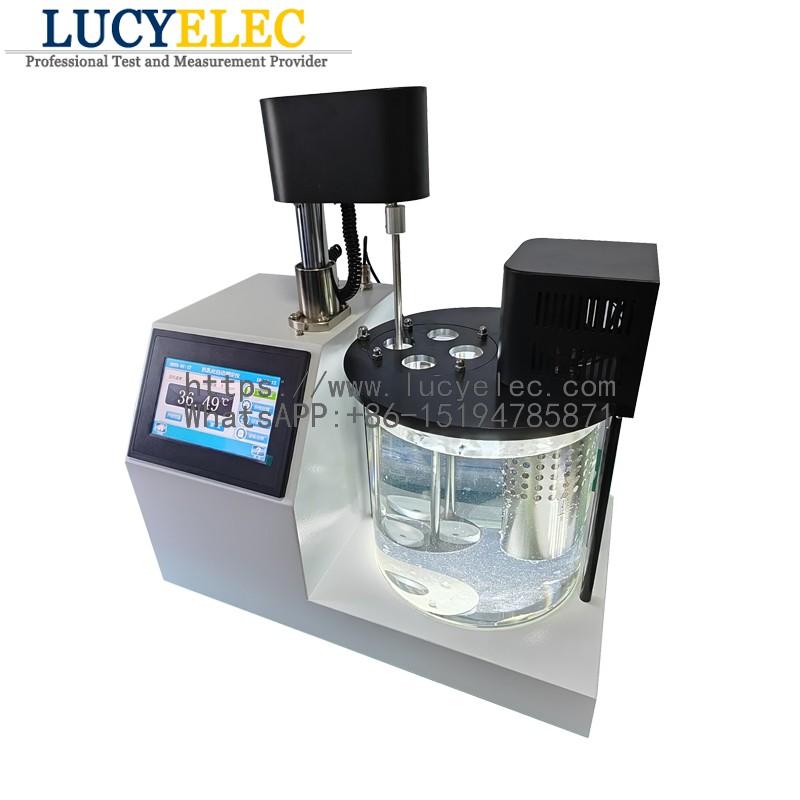

petroleum demulsibility tester[/caption] [caption id="attachment_1087" align="aligncenter" width="800"]

lubricant oil demulsibility tester[/caption]

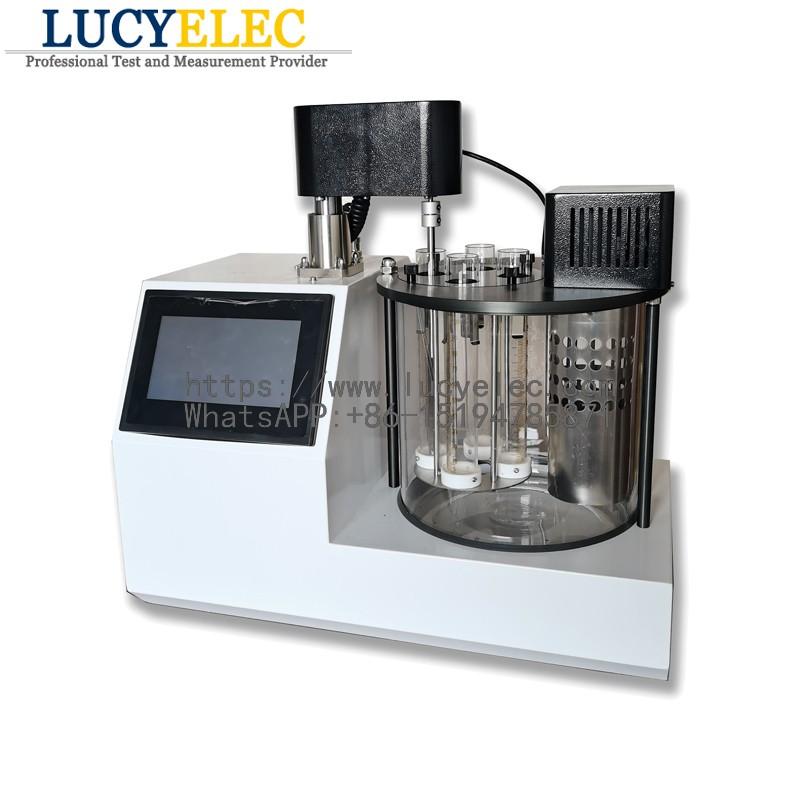

Petroleum Oil Demulsibility Measurement ASTM D1401 Water Separability Tester

Lucyelec DCKR-1401 Automatic Demulsibility Tester is designed and manufactured in compliance with Chinese National Standards GB/T7305, GB/T7605 and International standard ASTM D1401 ASTM D2711. It is used to determine the separation capability of petroleum products and synthetic fluids from water under standard conditions. This instrument integrates a constant temperature bath, electronic temperature control system, specimen stirring device, and lifting mechanism. Using a precision platinum resistance thermometer for measurement, it achieves high-precision temperature control. A color LCD touchscreen displays real-time temperature and timing values. As a high-tech product combining mechanical, electronic, and microcomputer technologies, it features high temperature stability, user-friendly operation, and advanced automation.

Petroleum Test Equipment Tags: Petrolab Instrument

Description

Petroleum Oil Demulsibility Measurement ASTM D1401 Water Separability Tester

Model: DCKR-1401 Automatic Water Separability Tester for Petroleum Products

I. General Description of Automatic Demulsibility Tester:

DCKR-1401 Automatic Demulsibility Tester is designed and manufactured in compliance with Chinese National Standards GB/T7305, GB/T7605 and International standard ASTM D1401 ASTM D2711. It is used to determine the separation capability of petroleum products and synthetic fluids from water under standard conditions. This instrument integrates a constant temperature bath, electronic temperature control system, specimen stirring device, and lifting mechanism. Using a precision platinum resistance thermometer for measurement, it achieves high-precision temperature control. A color LCD touchscreen displays real-time temperature and timing values. As a high-tech product combining mechanical, electronic, and microcomputer technologies, it features high temperature stability, user-friendly operation, and advanced automation.

II. Features and Advantages of ASTM D1401 Water Saperability Tester:
1.   Rapid temperature response, accuracy of ±0.01°C, and reliable performance.
2.   Full automation: Automated specimen stirring with intelligent speed control (1500±3 rpm).
3.   Advanced STMicroelectronics microcontroller and 7-inch LCD touchscreen.
4.   Automatic alarm function prompts operators when tests conclude.

Ⅲ. Technical Specification of DCKR-1401 Automatic Demulsibility Tester:

Parameter	Specification
Power Supply	AC 220V ±5%, 50Hz
Temperature Range	Ambient temperature to 110°C
Heating Power	1000W (Temperature control)
Temperature Accuracy	±0.01°C (PID control)
Stirring Speed	1500±3 rpm
Operating Temperature	0–40°C
Operating Humidity	≤85% RH
Display	7-inch touchscreen
Temperature Sensor	Precision platinum resistance (0.01°C)
Timing Range	1 sec – 999 min 59 sec
Test Wells	4
Calibration	Supports high-precision thermometer
Protection	Anti-static and anti-corrosion design

Ⅳ. Product Images of Petroleum Oil Demulsibility Tester DCKR-1401:

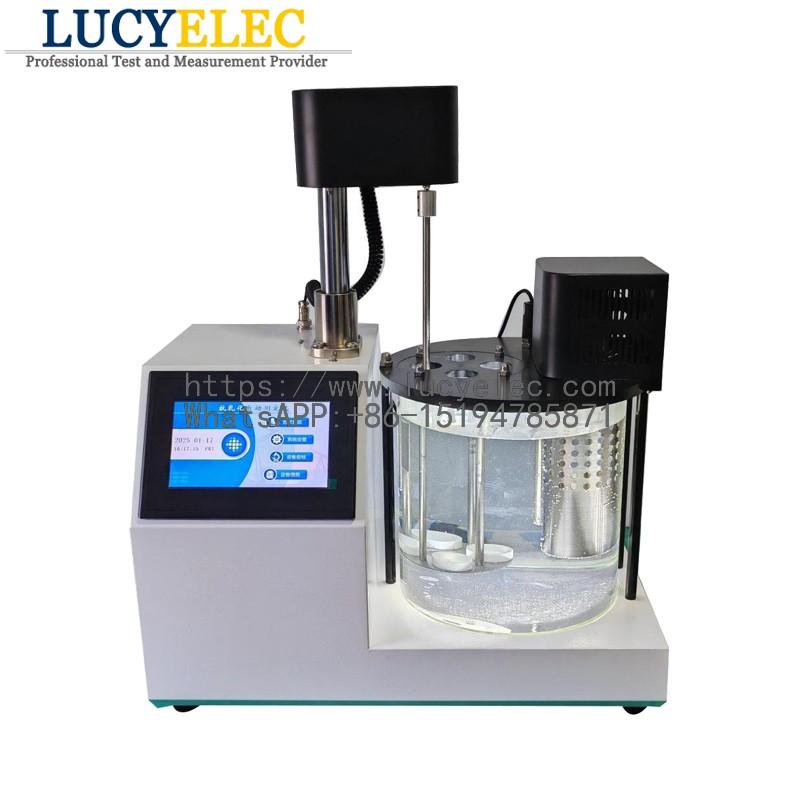

automated demulsibility tester

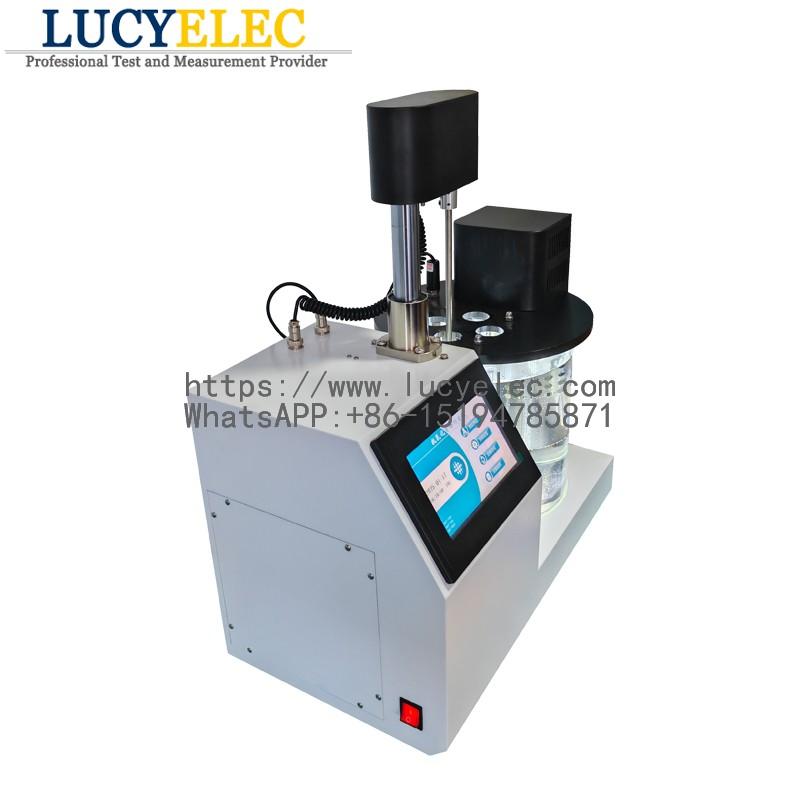

lubricant oil demulsibility tester
