Description

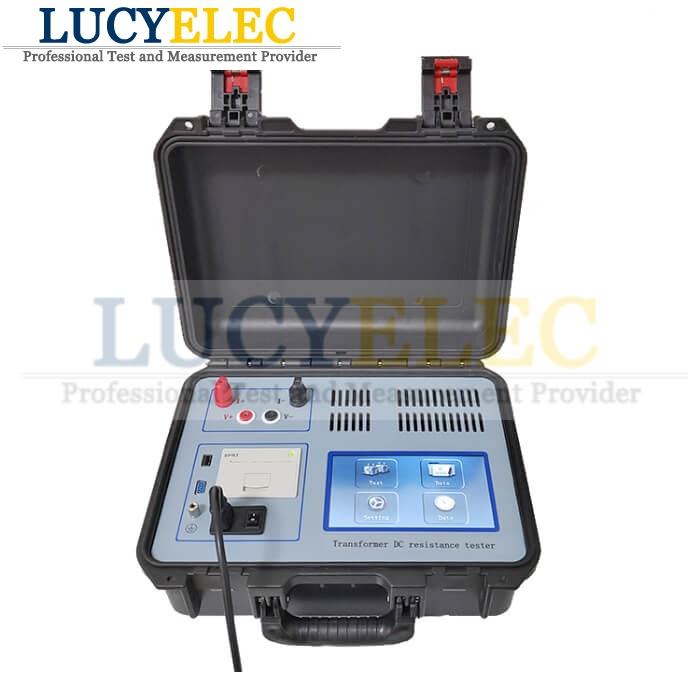

ZSR10A Transformer Winding Resistance Test Equipment

Model: ZSR10A

Ⅰ.Brief Introduction of DC Resistance Test Equipment

Winding resistance measurement is very necessary for transformer manufacturer and the department of electrical test programs during transformer factory test, installation, repair, handover and commissioning sections. The transformer coil can effectively find the device welding, connecting parts loose, missing unit, disconnection, and other manufacturing default and other hidden danger occurred after operation.

In order to meet the needs of rapid measurement of DC resistance of transformers, we developed ZSR10A DC Resistance Tester. The instrument is a new powerful technology, small size, light weight, high output current and other characteristics.

The device is controlled by the microcontroller, with a high degree of automation, automatic discharge functions. It is a test instrument of high precision, simple, direct way to achieve fast transformer measurement.

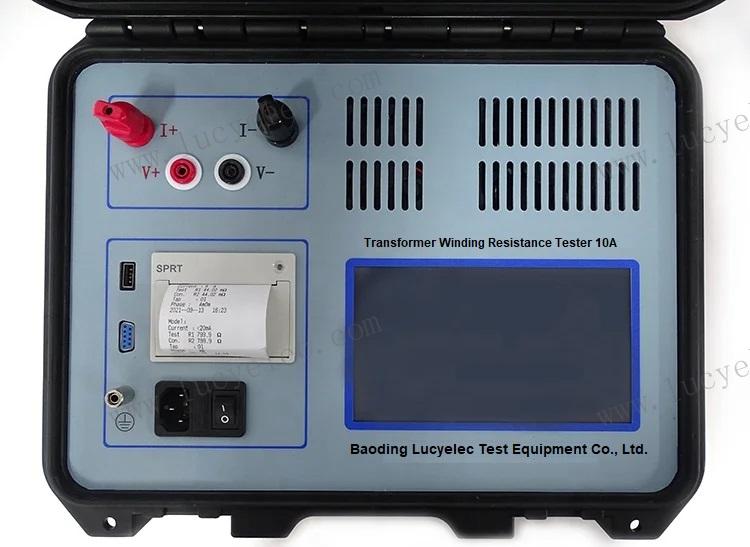

transformer winding tester

Ⅱ. Features and Advantages of Transformer Winding Ohmmeter

1. Whole instrument controlled by high speed SCM, high automatic degree and simple operation.
2. The instrument adopts advanced power supply technology, with multiple current position, test range is wide, suitable for testing DC resistance of large and medium size transformer.
3. Has a complete circuit protection, reliable.
4. Discharge alarm, discharge indicator clear, reduces misuse.
5. Intelligent power management technology, instrument is always working at minimum power state, effective energy saving, reduce heat.
6. Seven-inch high-brightness touch colorful LCD display
7. With calendar clock and power storage, can store 1000 groups data, can be check at any time.
8. The instrument has Bluetooth communication, RS232 communication and USB interface for computer communication and U disk data storage.
9. Self-contained micro printer, which can print measurement results.
10. Download the special APP, the instrument can connect to your mobile by bluetooth function to control the instrument throughout the special software, and the test data is stored and uploaded for easy reference.

Ⅲ. Technical Parameters of Winding Resistance Test Equipment

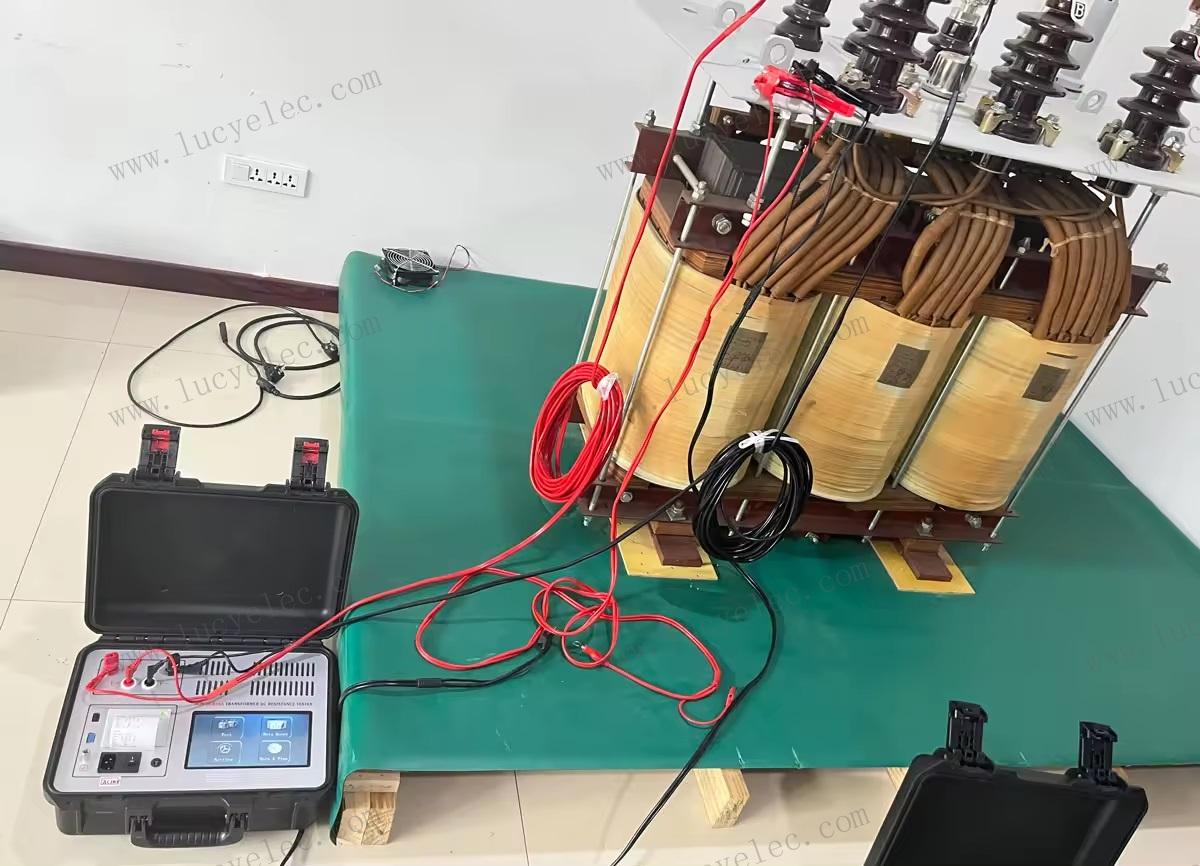

ZSR10A DC Resistance test for Power Transformer

Usage: The winding resistance tester is used for checking the welding quality of the winding joints and whether the windings have inter-turn short circuits, check whether the contact of each position of the voltage tap switch is in good condition, whether the actual position of the tap changer matches the indicated position, whether the lead wire is broken, and the multistranded wire is wound in parallel. Whether there is stock breakage, etc.

Advantege: 1. connect with bluetooth, really convenient by mobilephone control

2. hot-selling and good feedback by customers

At Lucyelec Test Equipment Co., Ltd., we take pride in offering the high-qualified transformer wind resistance tester. We also call it DC resistance tester. This equipment is designed to provide precise and reliable measurements of DC resistance, making it an essential tool for professionals in the electrical and power industry.

Service: The Winding resistance tester will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.

If you have any enquiry about quotation or cooperation, please contact by WhatsAPP: +86-15194785871, or email us at info@lucyelec.com  Our sales representative will reply you within 24 hours. Thank you for your interest in our products.
