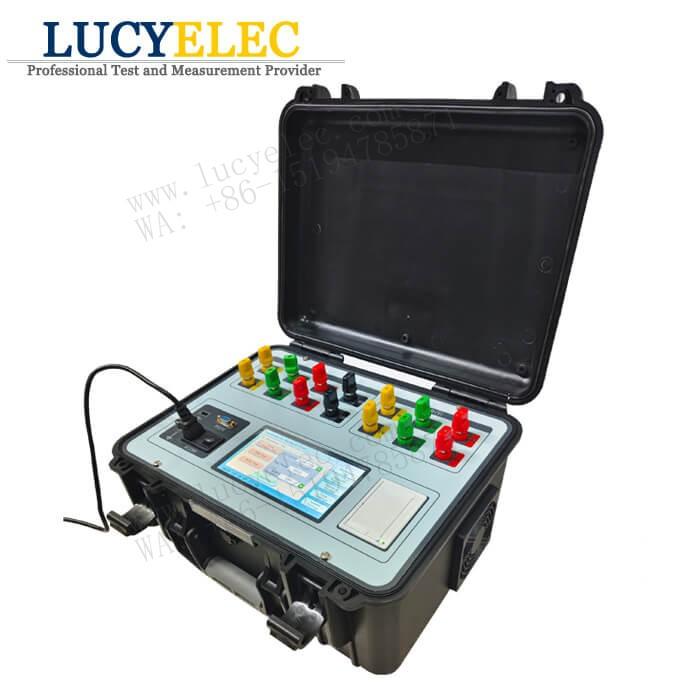

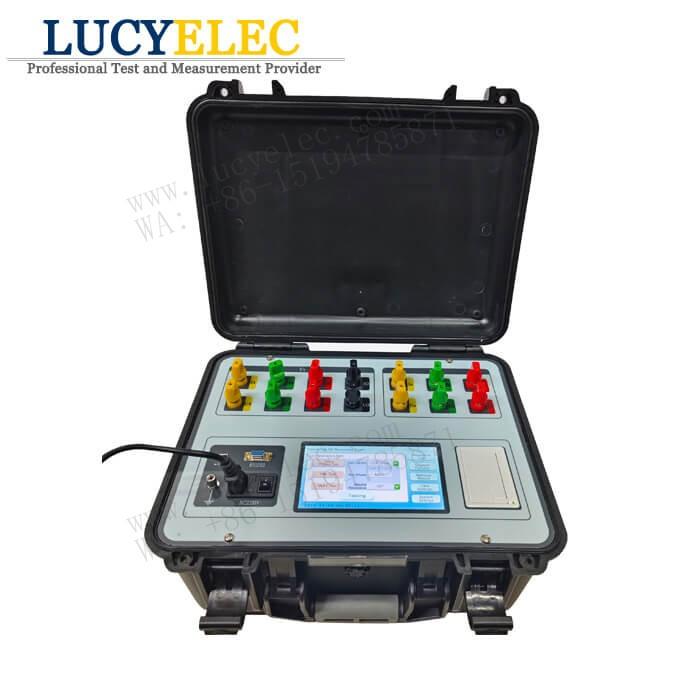

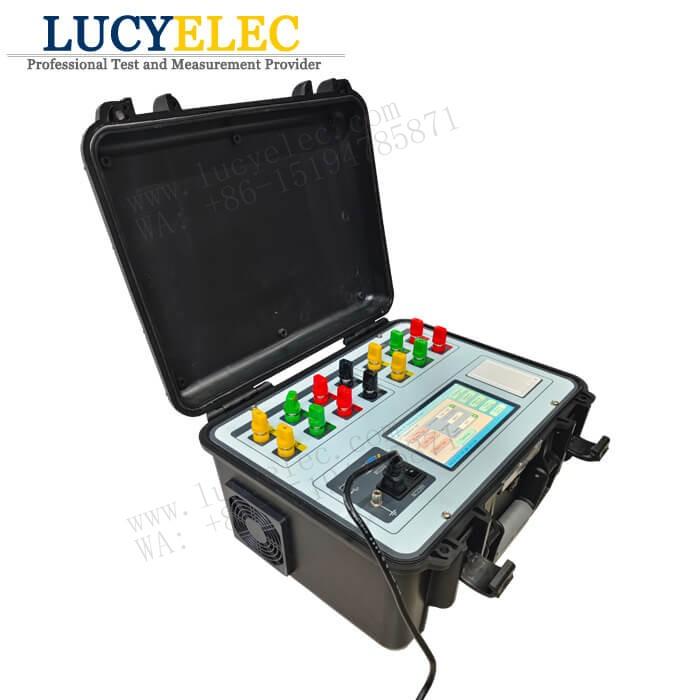

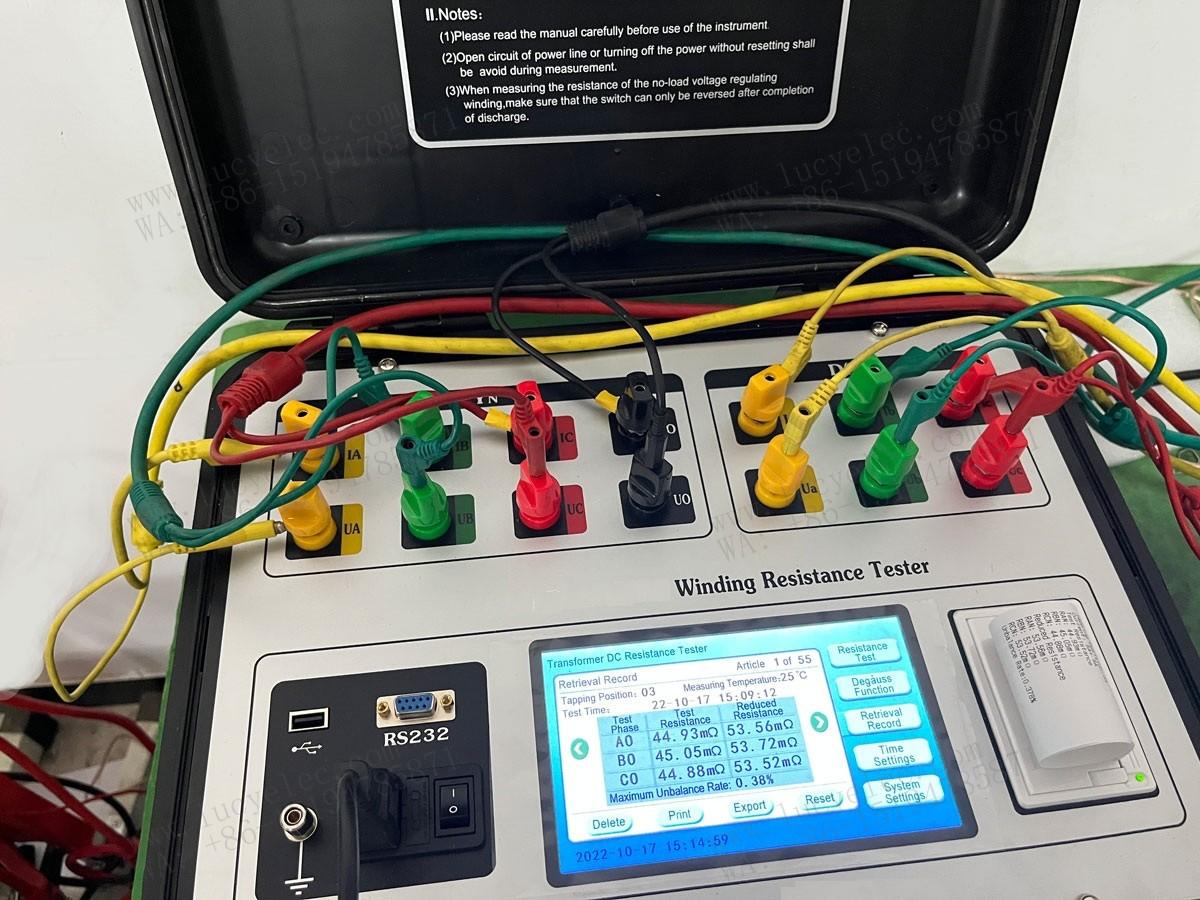

YCR9910S Degaussing Function 3 Phase Transformer DC Resistance Tester

YCR9910S Winding Resistance Tester is the single and 3 phase transformer DC resistance tester with magnetic and degaussing function. It aims to measure DC resistance of inductive devices, such as transformers and power inductors. It has features of simultaneous measurement and display of three-phase resistance and three-phase unbalance rate. Fast measurement, wide range, light weight, large output current, perfect protection functions, good repeat-ability, good anti-interference ability, high accuracy, which make it an ideal equipment for measuring DC resistance of transformer winding and high inductive equipment.

Features: 1. Single/Three-Phase simultaneous test, Magnetic Augment, and degaussing Function; 2. Seven inch colorful touch screen; 3. Built-in printer, USB and RS232 Interface. For more details, please contact Lucyelec .

Description

YCR9910S Degaussing Function 3 Phase Transformer DC Resistance Tester

Model: YCR9910S Winding Resistance Tester (Single 10A /Three-Phase 50A+50A simultaneous test, Magnetic Augment, and degaussing Function)

General Description:

YCR Series Transformer DC Resistance Tester is a mandatory test item for semi-finished products and finished products factory test, installation and handover test, and preventive test of the power department in the transformer manufacture industry. It can be used to effectively detect the defects in poor material selection, loose welding and connection parts, missing strands and broken wires of the transformer coil, as well as the operation hidden dangers. In order to meet the requirements of rapid measurement of transformer DC resistance, a large-scale power transformer DC resistance rapid tester integrated with Three-Phase simultaneous test function, Magnetic Augment Function, and degaussing Function into one body has been developed in our company. The tester has the functions of three-phase simultaneous power-on, independent current and voltage sampling, simultaneous measurement and display of three-phase resistance and three-phase unbalance rate, so as to greatly shorten the test period of transformer DC resistance and solve the problems about long time consumption for DC resistance measurement of each tap winding in power transformers.

Features and Advantages:

The tester can select corresponding output current value accordingto test products, and is mainly suitable for measuring the inductive DC resistance on transformers;
On large transformers with a five-leg core and low-voltage windings connected in delta, the tester can be used for the test in HV & LV series excitation mode. The magnetic augment circuit of the windings can be automatically connected in the tester, to quickly and accurately test the DC resistance of the low-voltage windings;
The tester has a Three Phases Test function to measure the three-phase DC resistance of the star-connected windings synchronously and calculate the three-phase unbalance rate automatically, so as to greatly reduce the measurement period and improve the test efficiency. Its phase by phase test function can also be used for phase by phase test on transformers with YN and D (Y) connections;
The winding material can be set according to the winding material of the transformer, such as copper or aluminum, to distinguish the conversion temperature coefficient of different materials.
The tester is equipped with transformer YN winding neutral point lead line resistance detection function, can make three-phase test data closer to the single-phase test value.
The tester has a complete protection circuit and sound discharge alarm, to inform the clear discharge indication and reduce the misoperation;
The tester is equipped with a 7-inch color touch screen. to display the test data clearly in real-time;
The tester has Chinese and English operation interfaces, which can be configured according to the user requirements;
The tester is equipped with a RS232 communication port, to transmit the test data to the background, with the control software in the host computer;
The tester is equipped with a USB port, to transfer test data into a U disk;
The tester has a built-in calendar and clock, as well as saving( save 100 groups of data), review, and printing functions of test data;
The tester has more complete parameter settings, including test windings, Tapping Positions, test phases, Tested Sample Temperature, Conversion Temperature and others of the transformers;
The tester is equipped with an industrial plastic case which ensures its good portability and improvesits service life.

Technical Specification:

Test current	10A, 5A, 1A, 200mA, 20mA(single phase) 5A+5A, 1A+1A, 200mA+200mA;20mA+20mA (three phases)
Measuring range	Single-phase: 10A: 1mΩ~2Ω; 5A: 2mΩ~4Ω; 1A: 10mΩ~20Ω; 200mA: 100mΩ~100Ω; 20mA: 10Ω~20KΩ; Three-phase: 5A+5A: 2mΩ~1.2Ω; 1A+1A: 10mΩ~6Ω; 200mA+200mA: 100mΩ~30Ω; 20mA+20mA: 10Ω~200Ω;
Measuring accuracy	±(0.2%+2 digits)
Max. resolution	0.1μΩ
Data storage	100 groups
Power supply	AC 220V±22V,50Hz/60Hz±1 Hz
Working conditions	Environmental temperature:-10-40ºC; Relative humidity: ≤80%
Size	428mm350mm230mm
Weight	10.2kg
