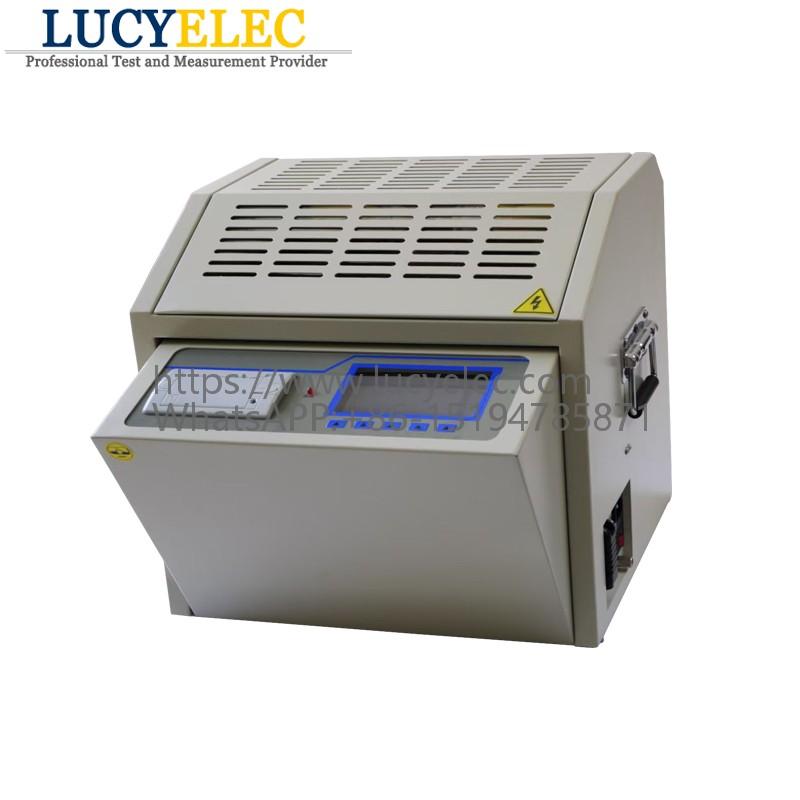

Lucyelec update BDV1001D[/caption] [caption id="attachment_1022" align="aligncenter" width="800"]

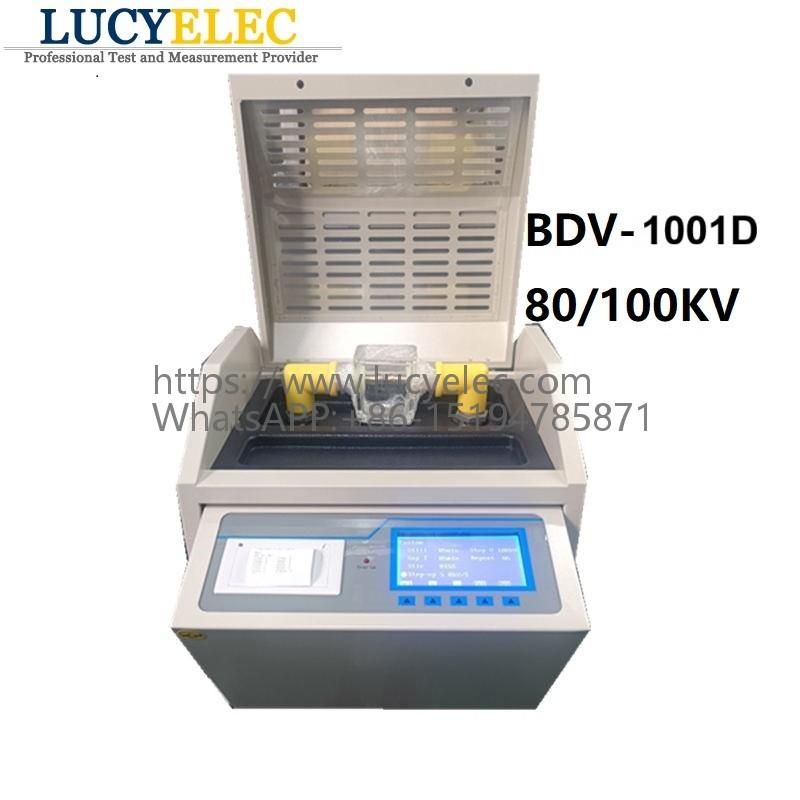

update BDV1001D transformer oil tester[/caption] [caption id="attachment_1023" align="aligncenter" width="800"]

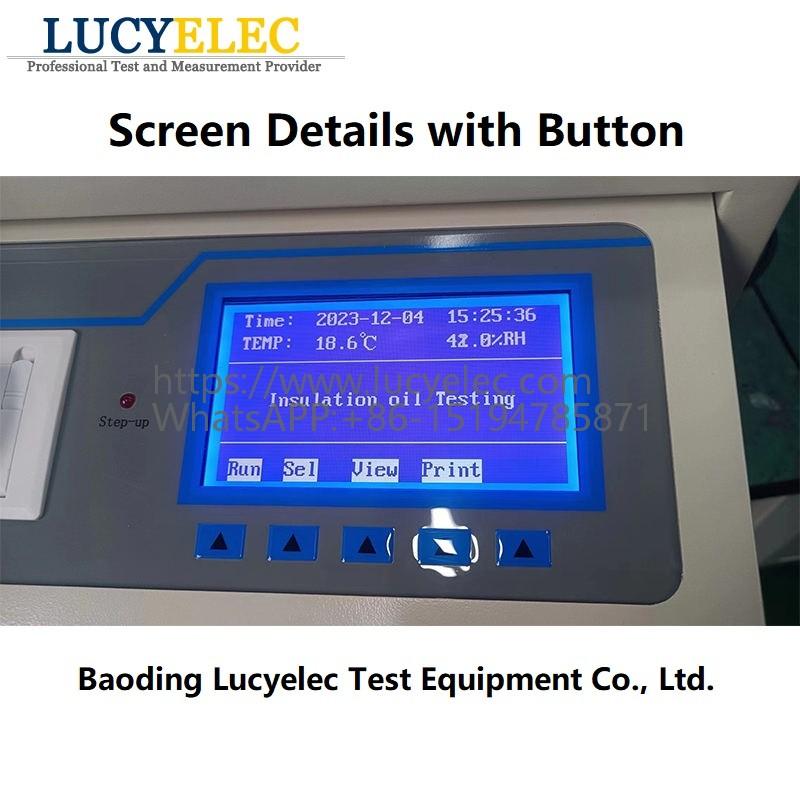

update BDV1001D[/caption]

Update BDV1001D 80kV 100kV Automatic Insulation Oil Tester

Transformer oil (also known as insulating oil) is important medium to insulate, stop arcing and corona discharge, and to dissipate the heat of the transformer. It used in most oil-filled electrical apparatus. And the dielectric breakdown voltage is the most essential test to transformer oil.

Update BDV1001D 80kV 100kV Automatic Insulation Oil Tester. It is single cup, compact and portable design, which makes it easy moving and suitable both indoor and outdoor use. Breakdown voltage up to 100KV. Program with ASTM D877 ASTM D1816 IEC60156 international standards, and custom parameters setup . Fully auto measuring with one button. It’s your ideal choice for transformer oil testing.

Description

Update BDV1001D 80kV 100kV Automatic Insulation Oil Tester

Model: BDV-1001D 80kV 100kV available, more compact and safe handling, suitable for both indoor and outdoor usage.

Ⅰ. General Descriptions:

BDV-1001D Automatic Oil Dielectric Strength Tester. It is single cup and double casing. Compact and portable design makes it easy moving and suitable both indoor and outdoor use. Breakdown voltage up to 100KV. Program with ASTM D877 ASTM D1816 IEC60156 international standards, and custom parameters setup . Fully auto measuring with one button. It’s your ideal choice for transformer oil testing.

Ⅱ. Features and Advantages:

2.1 The instrument adopts large-capacity single-chip microcomputer (SCM) control and works more stable.

2.2 Special circuit design inside the instrument eliminates the phenomenon of crashes.

2.3 Built-in four standards (ASTM D877, ASTM D1816, IEC60156, DL429.9-91), and program user-defined.

2.4 Oil vessel is the one-time casting organic glassware, different volume available.

2.5 Large LCD screen with backlight display.

2.6 Multiple protective functions (over-current, over-voltage, short-circuit, etc), strong anti-jamming capability, and good electromagnetic compatibility functions.

2.7 Portable structure, easy to move, and convenient for both indoor and outdoor use.

2.8 RS232 interface is optional.

Ⅲ. Technical Specifications:

Model: BDV-1001D Automatic Insulation Oil Dielectric Stregth Tester

Booster capacity	1.5 kVA
Voltage Boost speed	0.5kV/s-5.0kV/s (increasing every 0.5kV/s), 10 gears option, Error 0.2kV/s
Output voltage	0-80 kV, 100kV available
Voltage accuracy	±2% reading+2 digits
Power distortion rate	< 1%
Electrode gap	standard 2.5 mm
Number of tests	6 times (1-10 times optional)
Rest time	99 minutes
Interval time	99 minutes
Stiring time	15S (0-255S optional or on/off)
Display	5.4 inch large screen LCD display
Interface	Standard RS232
Dimensions	430x350x370mm
Instrument weight	36 kg

Working Conditions:
Environmental Temperature: 0~40ºC
Relative Humidity: <=85%
Power Supply: 100-240V, 50/60Hz
Power Consumption: <200W

Ⅳ. Detailed Image:

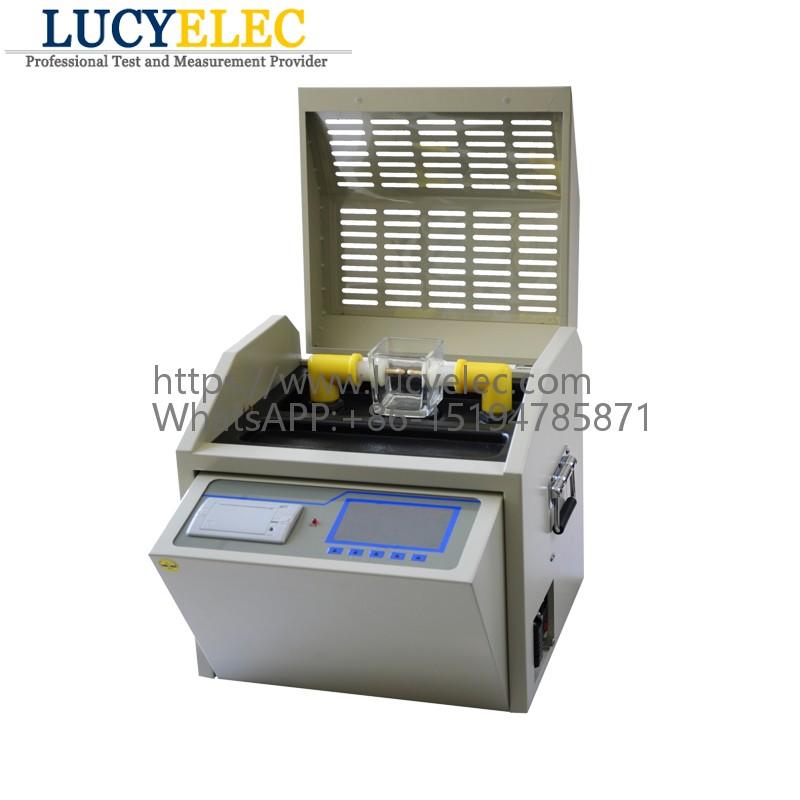

update BDV1001D transformer oil tester

Update BDV1001D All Accessories:

BDV1001 All accessories
