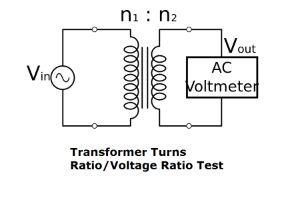

transformer turns ratio test[/caption]

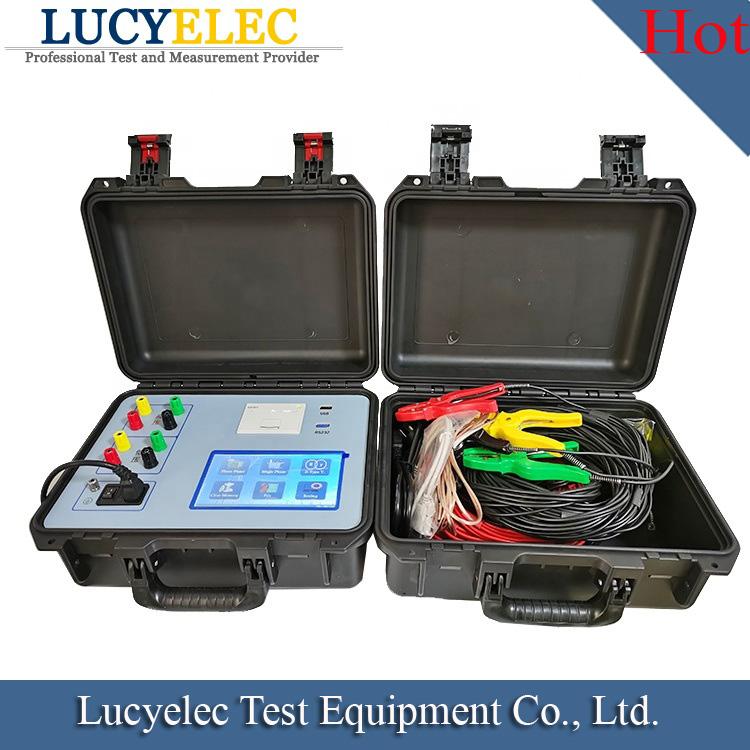

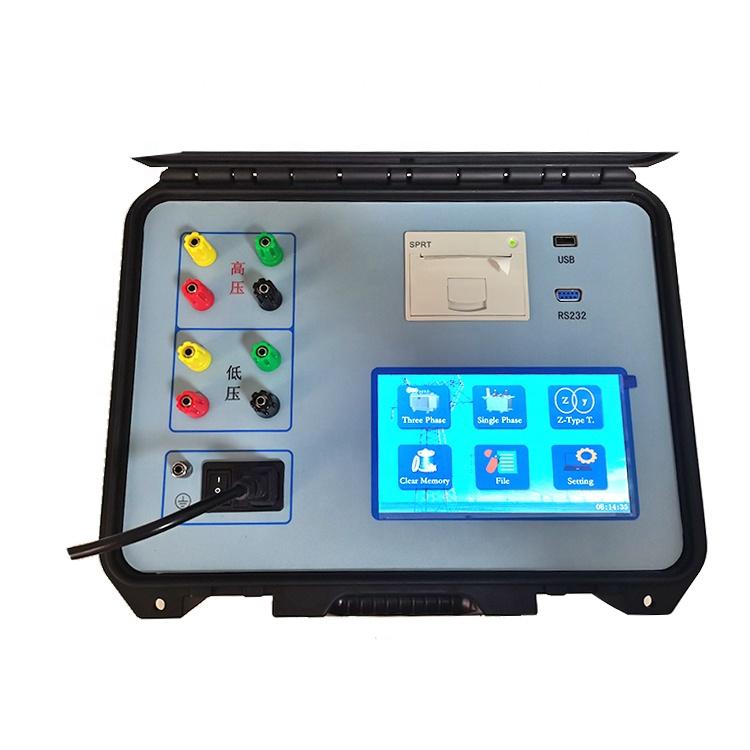

Portable 3 phase TTR Transformer Turns Ratio Tester

Portable 3 phase TTR Transformer Turns Ratio Tester supplied by Lucyelec Test Equipment Co., Ltd., is auto measuring with neutral point, bluetooth and cellphone controlled with APP, Built-in printer, USB and RS323 Interface. Suitable for variety of transformers, especially for the Z-type transformers, rectifier transformers, grounding transformers, electric furnace transformers, phase-shifting transformers, balance transformers, etc. It finishes test of three-phase voltage ratio or turns ratio once, fast testing and high precision.

Advantage: 1. It has Neutral point; 2. Can be connected with control 3. For more details, please contact Lucyelec

Transformer Test Kits, Transformer Turns Ratio Tester (TTR), Featured Products Tags: transformer turns ratio tester, TTR

Description

Portable 3 phase TTR Transformer Turns Ratio Tester

Model: TTR-6810A (Cellphone controlled with APP, Built-in battery is optional)

Ⅰ.Brief Introduction of Turns Ratio Tester

During the processing of semi-finished products and the finished products in transformer production, the transformer newly installation before

commissioning, or according to IEC and national standard, the turns ratio or voltage ratio should be tested in the circle rate. It aims to check the correctness

of the transformer turns ratio, the condition of the tap changer, whether the transformer is short-circuited between turns, and whether the transformer can

be operated in parallel. TTR-103 three phase transformer turns ratio tester is the update replacement of traditional bridge method. It finishes test of three

phase voltage ratio or turns ratio once, fast testing and high precision.

Advantege: 1. It has Neutral point; 2. Can be connected with bluetooth and cellphone controlled with APP control 3. Built-in printer, USB and RS323 Interface. For more details, please contact Lucyelec

Ⅱ. Features and Advantages of transformer ratio tester

Using a three-phase precision inverter power supply as the measurement voltage, which eliminates the harmonic influence of the mains voltage during measurement and makes the measurement more accurate. no influence when working with power generator.
The three-phase output voltage is adopted to improve the test speed. The phase angle can be measured, and automatically identify the transformer wiring group 0-11. For the low-voltage rectifier transformer measuring multiple windings, the low-voltage side can measure the transformation ratio and the angle deviation of 7.5 ° without removing the wiring.
It is suitable for a wide variety of transformers, especially suitable for the measurement of Z-type transformers, rectifier transformers, grounding transformers, electric furnace transformers, phase-shifting transformers, balance transformers, etc.
With high and low voltage reverse connection protection, transformer turn-to-turn short-circuit protection, tap switch failure protection, and output full short-circuit protection, it increases the stability of instrument.
After input parameters, it can automatically measure the transformer ratio, error value and tap position of the tap changer. Especially for tap changers with asymmetric tapping, it can accurately measure the position of tap changer. A tap switches capable of measuring 99 tap positions.
Adopt 7-inch high-definition LCD colorful touch screen, modular display, good visibility even under strong light.
The instrument not only has print output, U disk interface, but also can be equipped with RS232 interface, which is convenient for paperless office.
With sealed water-proof and shock-proof sturdy hand case, it’s cold-resistance, high temperature resistance, which is suitable for field test.
With Bluetooth function, instrument can be controlled by Android cellphone or ipad.

Ⅲ. Technical Parameters of transformer turns ratio tester

1	Test Range	Ratio		Angle
		0.9~10000		0~360°
2	Accuracy	±0.1%+2 digit	0.9~500	±0.2°
		±0.2%+2 digit	501~2000
		±0.5%+2 digit	2001~10000
3	Best Resolution	0.0001		0.01°
4	Output Voltage	Automatically adjust according to load
5	Power Supply	AC220V±10% 50±1Hz
6	Working Temperature	-10℃～40℃
7	Relative Humidity	0 ~ 85%, non-condensing
8	Dimension	Instrument Case 360290170(mm) Accessories Case 360290170(mm)
9	Weight	Instrument 5 KGS Accessories case 5.5 KGS

At Lucyelec Test Equipment Co., Ltd., we take pride in offering the high-qualified Transformer Turns Ratio Tester. We also call it voltage ratio test. This equipment is designed to provide precise and reliable measurements of transformer turns ratio, making it an essential tool for professionals in the electrical

and power industry.

Service: The TTR will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.

If you have any enquiry about quotation or cooperation, please contact by WhatsAPP: +86-15194785871, or email us at info@lucyelec.com Our sales representative will reply you within 24 hours. Thank you for your interest in our products.
