Three Phase DC Winding Resistance Tester 20A

Model: YCR20T (1 Phase: Max. 20A, 3 Phase: Max. 10A+10A)

Ⅰ.Brief Introduction of 3 Phase Winding Resistance 20A

DC resistance of transformer is the essential item to be tested in semi-finished product, finished product delivery test, installation, handover test and preventive test by electric power department, and is effective to help find manufacturing defects such as materials selection for transformer coil, welding, looseness on connection, strand breaking, wire breaking and so on, as well as hidden dangers after operation. To satisfy the requirement for quick measurement of DC resistance of transformer, our Company has developed YCR20T three phase winding resistance tester aiming at YN connection winding. The tester can fulfill functions such as simultaneous energization on three phases, independent current sampling, voltage sampling, as well as simultaneous measurement and display of three-phase resistance value and three-phase unbalance rate, thus can significantly reduce test time for DC resistance of transformer, solve the problem of long test duration for DC resistance of each tapped winding of electric power transformer. It requires only 1/3 of the time required by traditional method.

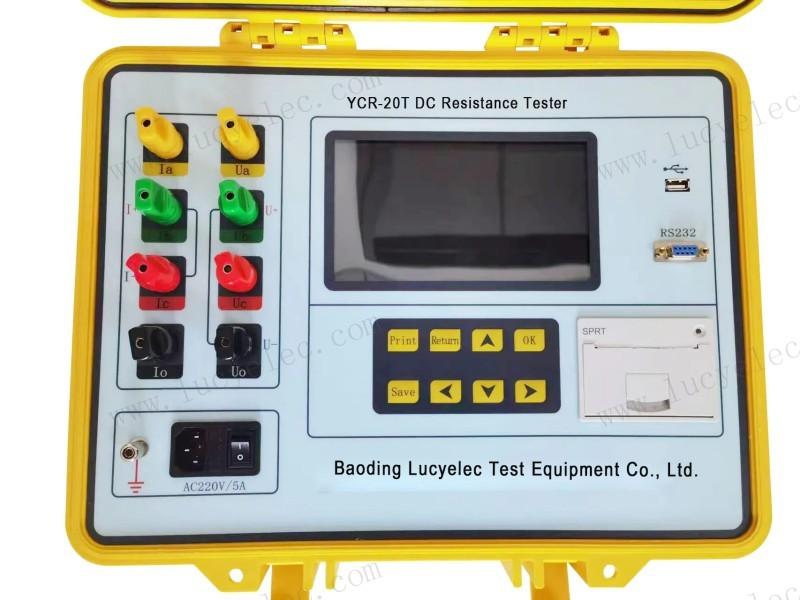

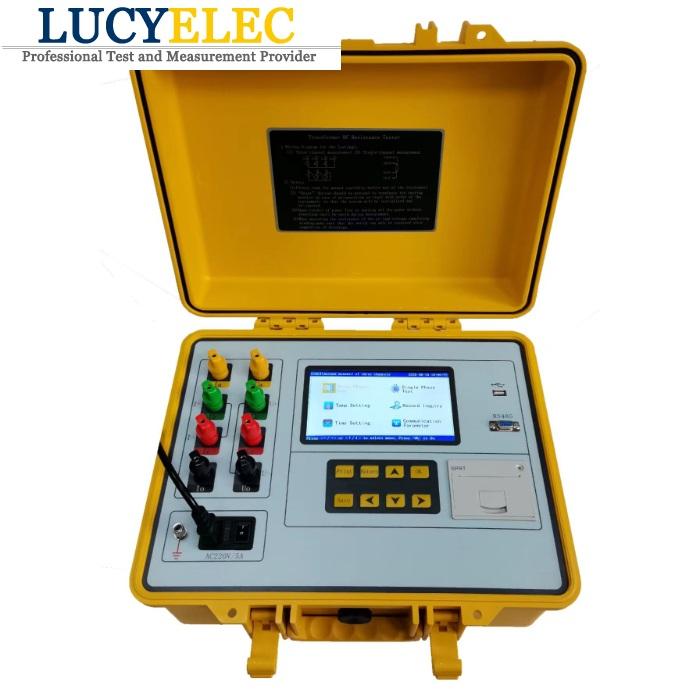

Panel display of YCR20T DC resistance tester

Ⅱ. Technical Parameters of Three Phase DC Resistance 20A

1. Output Current: select current automatically (maximum 20 A)
2. Test Range: 0-100 Ω
3. Accuracy: 0.2%±2digit
4. Minimum Resolution: 0.1 μΩ
5. Working Temperature: -20~40℃
6. Ambient Humidity: ≤80%RH, no condensation
7. Altitude: ≤1000meters
8. Power Supply: AC220 V±10%, 50 Hz±1 Hz
9. Dimension: L 400 mm*W 340 mm*H 195 mm
10. Net weight: 8 kg

Ⅲ. Features and Advantages of Three Phase DC Winding Resistance Tester 20A

1. The instrument has big current output and can select current automatically; convenient for operation.
2. Three-channel measurement, real time collection, simultaneous measuring of three resistance values and calculating three-phase resistance unbalance degree.
3. Not only able to measure three phases simultaneously, but also able to measure with single channel as traditional method; possessing temperature conversion function, convenient for use.
4. Possessing perfect protective circuit which is highly reliable.
5. Built-in calendar clock, 500 sets of data storage, retrieval and printing function.
6. Be able to set printing information such as phase sequence and tapping position of resistance.
7. Industrial plastic shell case with light weight; convenient for carrying.
8. Possessing audio discharging alarm with clear discharging indication to reduce misoperation.

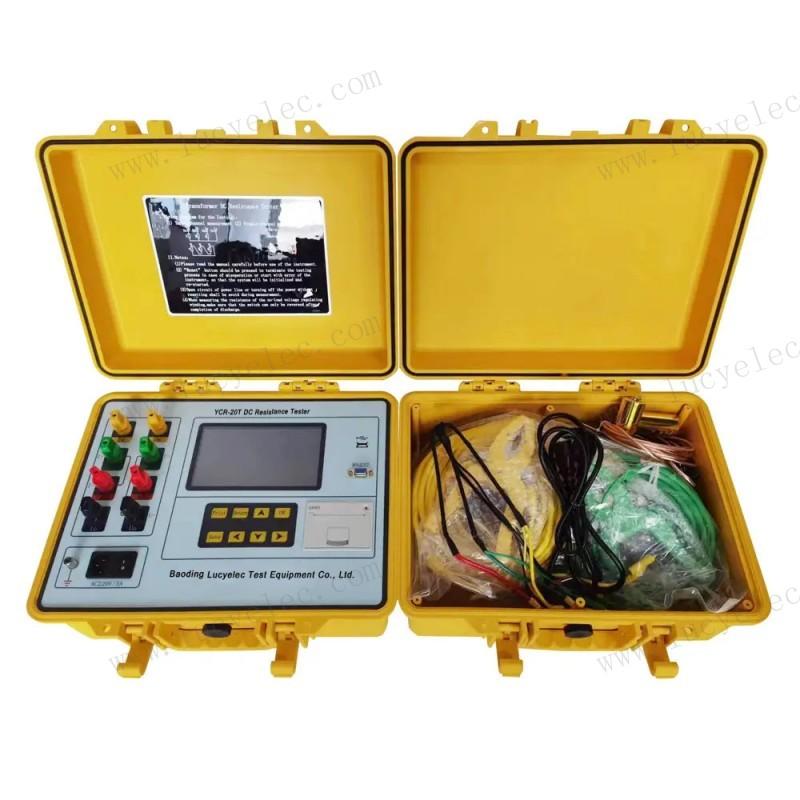

The full set of YCR20T winding resistance tester

At Lucyelec Test Equipment Co., Ltd., we take pride in offering the high-qualified Three Phase DC winding resistance tester. We also call it 3 phase DC resistance tester. This equipment is designed to provide precise and reliable measurements of DC resistance, making it an essential tool for professionals in the electrical and power industry.

Service: The Winding resistance tester will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.
