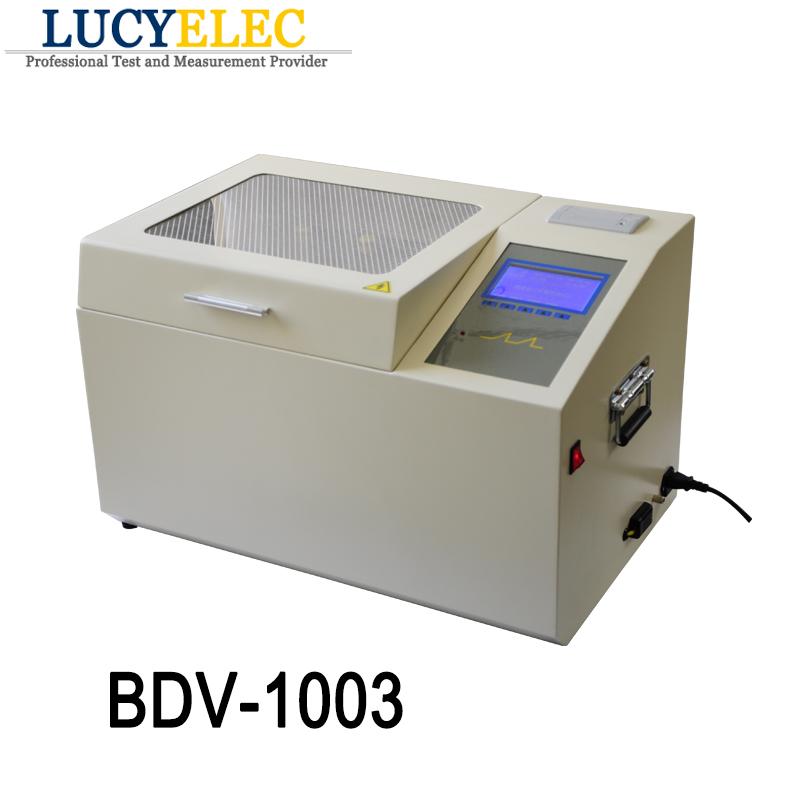

[caption id="attachment_1027" align="aligncenter" width="800"]
BDV-1003 transformer oil tester[/caption]
[caption id="attachment_286" align="aligncenter" width="700"]
oil bdv test set[/caption]
[caption id="attachment_1023" align="aligncenter" width="800"]
update BDV1001D[/caption]

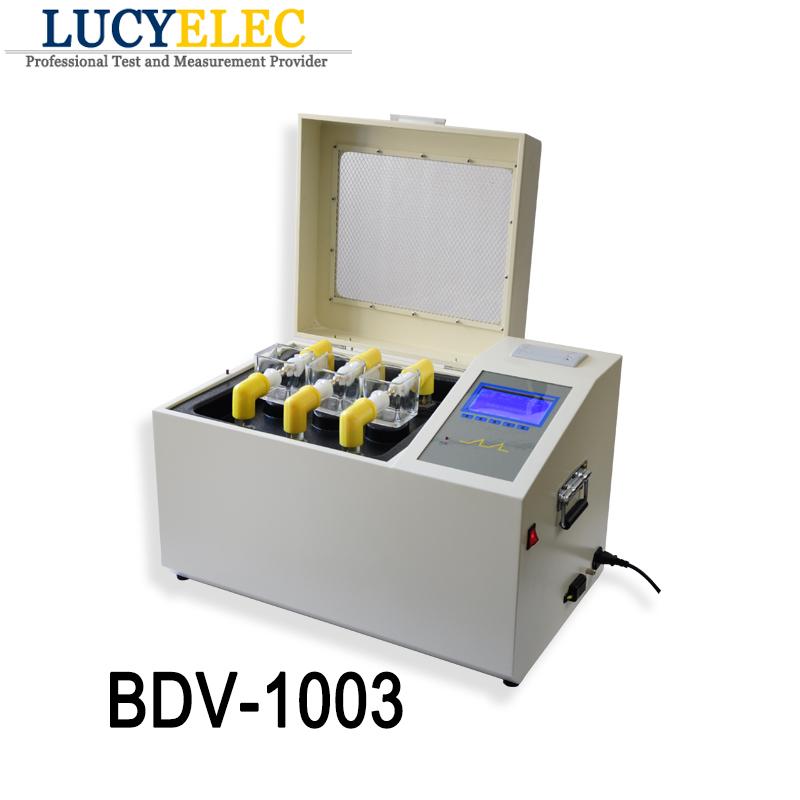

BDV-1003 Lucyelec Three Cups Transformer Oil BDV Test Kit
Output voltage 80KV. Can automatically test 3 oil samples
Can display current temperature, humidity and clock.
With large LCD screen and RS232 interface.
Capacity of oil cup 200ml (350ml, 400ml, 500ml is optional)
Welcome to inquiry more.
Model: BDV-1003 80kV, Can measuring three oil samples in one time
Ⅰ. General Descriptions:c
BDV-1003 Lucyelec three cups transformer oil BDV test kit is the three cups transformer oil bdv test kit. Conform to standard GB/T 507, IEC60156, ASTM D877, ASTM D1816. Automatically complete boosting, maintaining, mixing, standing, calculating, printing and other operations.
Ⅱ. Features and Advantages:
1. Automatically complete boosting, holding, stirring, standstill, calculating and printing.
2.Enable to carry out oil circulating withstand voltage test within the range of 0-80kV.
3.Large-screen LCD display.
4.Enable to automatically complete withstand voltage for 3 oil samples according to the setting.
5.Power-down preservation.
6.Uniform boosting, voltage frequency accurately to 50Hz
7.With over-voltage, over-current, limit protection, in order to ensure safety
8.With functions of temperature measurement display as well as the system clock display
Ⅲ. Technical Specifications:
| Output voltage | 0-80kV |
| Power distortion rate | <3% |
| Voltage increasing speed | 0.5~5.0kV/s (adjustable) |
| Voltage measurement error | ±3% |
| Capacity | 1.5kVA |
| InputPower | AC220V± 10%, 50Hz±1Hz |
| Power | <200W |
| Working temperature | 0℃-+40℃ |
| Oil cup volume | 200mL (400mL optional) |
| Electrode spacing | 2.5mm |
| Humidity | <80%RH |
| Dimension | 470*430*480mm |
| Weight | 49 kg |
Product names：Transformer oil bdv tester, BDV Tester Kit, portable BDV measuring kit, BDV of transformer oil, transformer oil breakdown voltage tester, Automatic transformer oil dielectric stength tester, breakdown voltage of transformer oil, Dielectric Strength of Transformer Oil, transformer dielectric oil test equipment, insulation oil tester, oil pressure tester, oil dielectric strength tester, insulation oil dielectric strength tester, insulation oil pressure tester, automatic insulation oil tester, automatic oil tester, portable oil pressure test device
