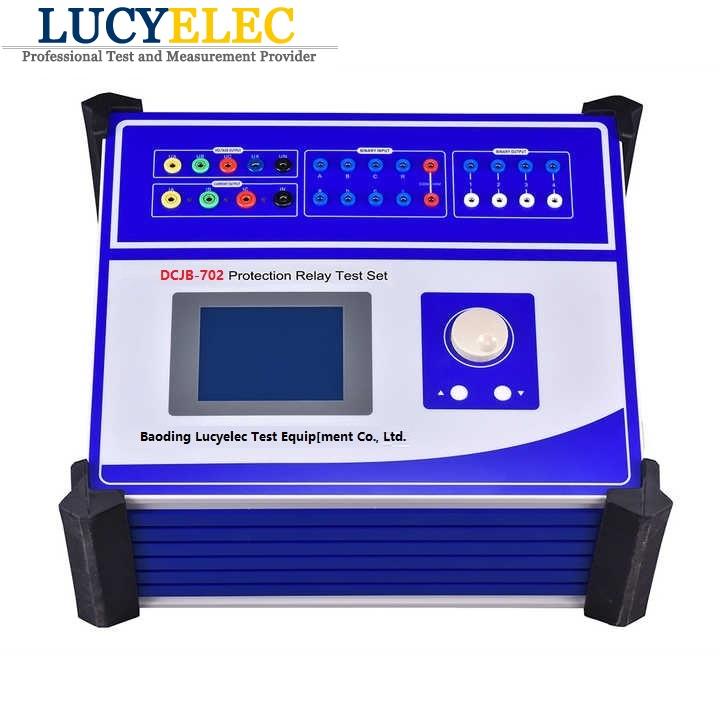

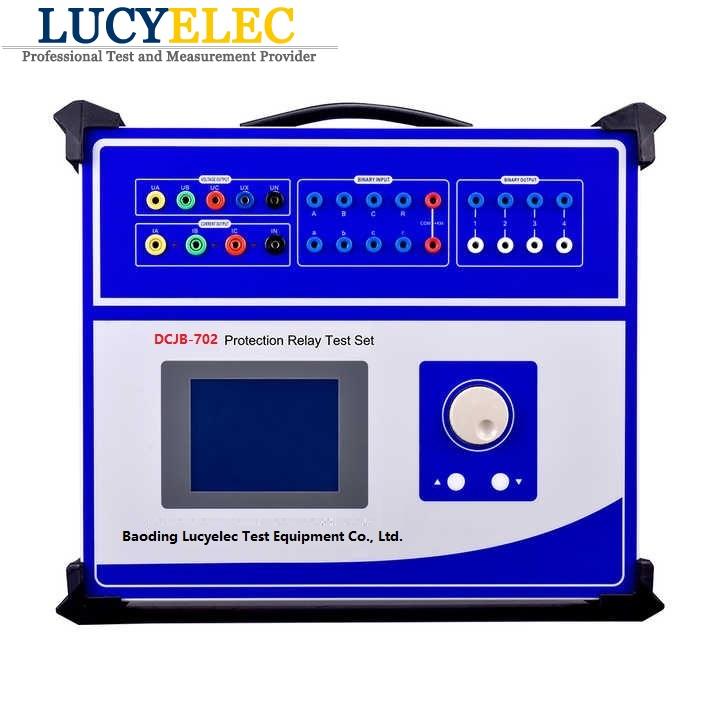

Three phase relay test set[/caption] [caption id="attachment_792" align="aligncenter" width="720"]

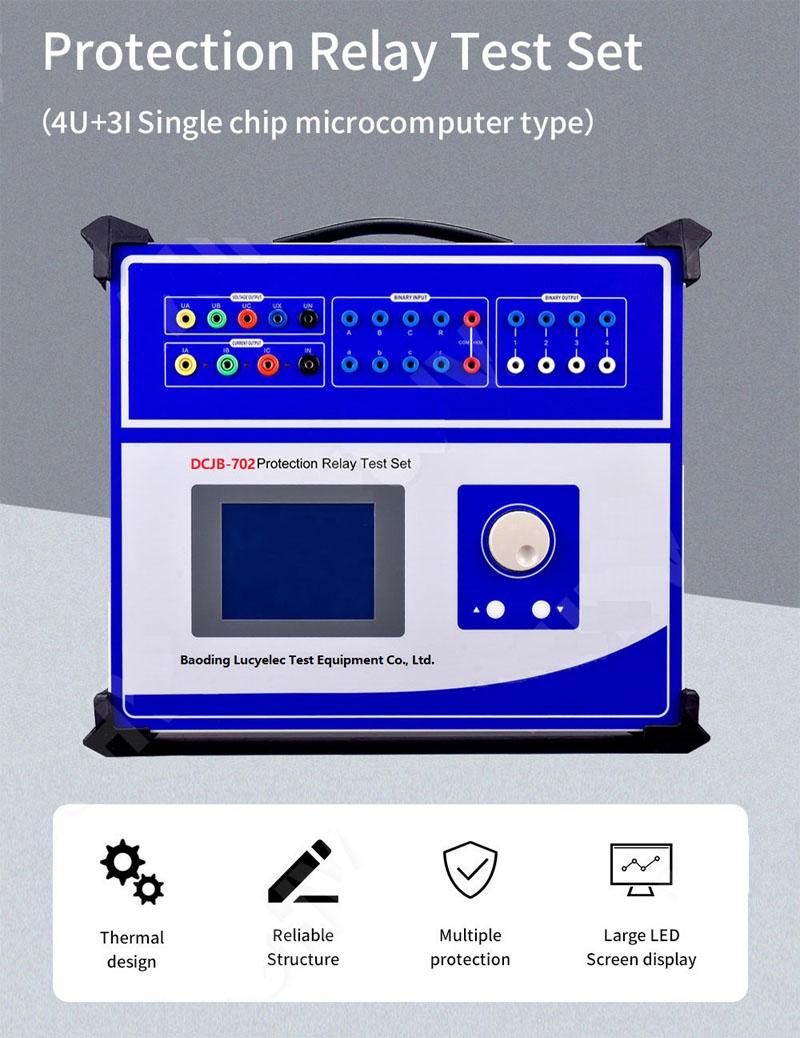

portable relay test kit[/caption]

Secondary Current Injection Three Phase Relay Test Kit

DCJB-702 Secondary Current Injection Three Phase Relay Test Kit

Microcomputer three - phase single - chip microcomputer relay protection test equipment

Reasonable heat dissipation structure design, with a variety of reliable and perfect protection measures and power soft start
It is convenient to carry out all kinds of combined output for all kinds of protection tests
Adopt 320×240 dot matrix large screen high resolution graphics LCD

Relay Test Set Tags: Relay Test Set, 3 Phase Relay Tester

Description

Secondary Current Injection Three Phase Relay Test Kit

Model: DCJB-702

3 phase relay test set

Ⅰ. General Descriptions of Three Phase Relay Test Kit:

Microcomputer relay protection tester is in reference to issued by the ministry of the type of microcomputer relay protection test device technical conditions (discussion paper), on the basis of widely to listen to your users, summarizes the current domestic similar products strengths and weaknesses, full use of modern advanced microelectronics technology and the implementation of a new type of device miniaturization of microcomputer relay protection tester. Microcomputer relay protection tester with a large screen LCD display and flexible and convenient rotating mouse controller. Stand-alone operation has a strong function, can carry out most of the tests, connected to the computer operation has a more powerful operation function. Small size, high accuracy. Not only has the large tester superior performance, advanced function, but also has the small tester compact and flexible, easy to operate, high reliability, performance and cost. It is a good tool for the maintenance workers.

Product names：microcomputer relay protection tester, microcomputer relay protection tester, three phase relay protection tester, relay protection tester, three phase relay protection tester, three phase relay protection calibrator, relay protection calibrator, three phase relay protection calibrator, relay protection tester

Ⅱ. Features and Advantages of Secondary Relay Test Kit:

1. Standard 4-phase voltage and 3-phase current output, with 4-phase voltage and 3-phase current output, can conveniently carry out various combination outputs for various types of protection tests. Single-phase voltage can output up to 120V, single-phase current up to 40A (10 seconds), current three and can output up to 120A, the fourth phase voltage Ux is a multi-function voltage item, can be set as 4 kinds of 3U0 or check the same period voltage, or a certain voltage value of the case output.
2. Single machine is easy to operate. The single machine is operated by a convenient and flexible rotating mouse through a large LCD screen, all of which are displayed in Chinese. It can complete most of the field test verification work, can verify all kinds of relays and microcomputer protection, and can simulate all kinds of complex transient, permanent and transformational faults for the whole group of tests. Boot can be used, easy to operate.
3. Double operation mode, connected to the computer operation, through the Windows platform of the full set of Chinese operating software, can carry out a variety of large complex and higher degree of automation verification work, can be easily tested and scanned a variety of protection fixed value, can be real-time storage test data, display vector diagram, draw fault waveform, online print report, etc.
4. Software is so powerful that can complete all kinds of high degree of automation of large complex check work, such as three phase differential test, auxiliary power fast cutting, prepared from the cast test, line protection inspection period reclosing, etc., can easily test and scanning, protection setting various fault playback, real-time storage test data, show that the vector diagram, online printing report, etc.
5. Switch quantity contact is rich, three – phase for 7 contact input and 2 pairs of empty contact output. The input contacts are compatible with 0 ~ 250V potential contacts and can be identified automatically. Input and output contacts can be expanded according to user needs.
6. Large screen LCD display, microcomputer relay protection tester adopts 320×240 lattice large screen high-resolution graphics LCD display, all the operation process are set on the display screen, the operation interface and test results are displayed in Chinese, the display is intuitive and clear.
7. Self-protection, adopt reasonable design of heat dissipation structure, and have a variety of reliable and perfect protection measures and power soft start, and a certain fault self-diagnosis and locking function.
8. With an independent dedicated dc power output, the device is equipped with one 110V and 220V dedicated dc power output.
9. High cost performance, belongs to the cross – professional joint design products, integrated multi – professional advanced scientific and technological achievements. Both large tester performance, and small tester price, with a high performance ratio.

Ⅲ. Technical specifications of Secondary Injection Test Set:

AC Current Output
Phase current output (effective value)	0~40A
Output precision	0.2 degree
3 phase parallel current output (effective value)	0~120A
A Long-time Phase current	10A
Maximum output power of Phase current	450VA
Maximum output power of 3 parallel current	900VA
Maximum Permitted work time of 3 parallel current	10S
Frequency range ( fundamental)	0~1000Hz
Harmonic time	0~20
DC Current Output
Current output	0～±10A / phase, 0～±30A / 3 parallel
Output precision	0.5 degree
AC Voltage Output
Phase voltage output (effective value)	0~120V
Output precision	0.2 degree
Line voltage output (effective value)	0~240V
Phase voltage / Line phase output power	80VA / 100VA
Frequency range (fundamental)	0~1000Hz
Harmonic time	0~20
DC Voltage Output
Phase voltage output range	0～±160V
Output precision	0.5 degree
Line voltage output range	0～±320V
Phase voltage / Line phase output power	70VA / 140VA
10 Path Digital Input and 8 Path Digital Output
Time measuring range	0.1ms ～ 9999s ，accuracy of measurement ＜0.1ms
For more information about our company & products, please CLICK HERE to contact us.

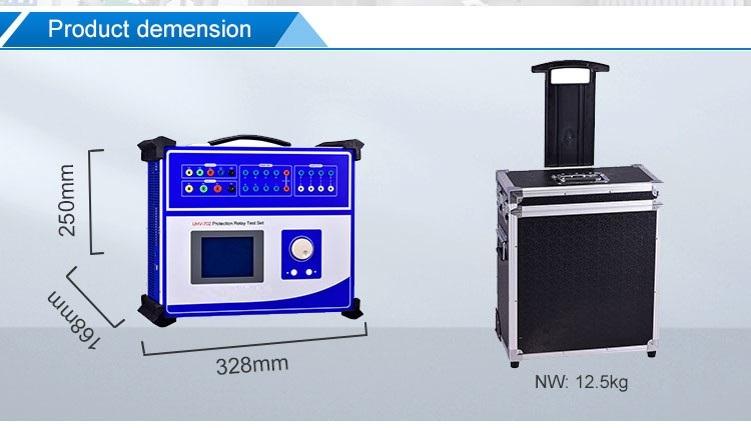

dimension of three phase relay test set
