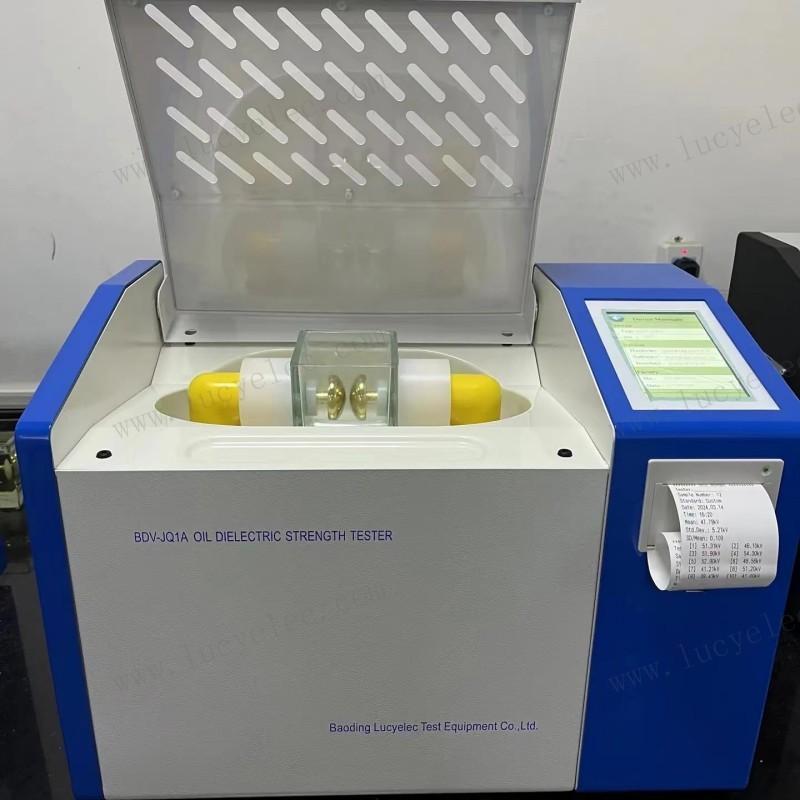

[caption id="attachment_873" align="aligncenter" width="800"]
Lucyelec Transformer Oil BDV Tester[/caption]

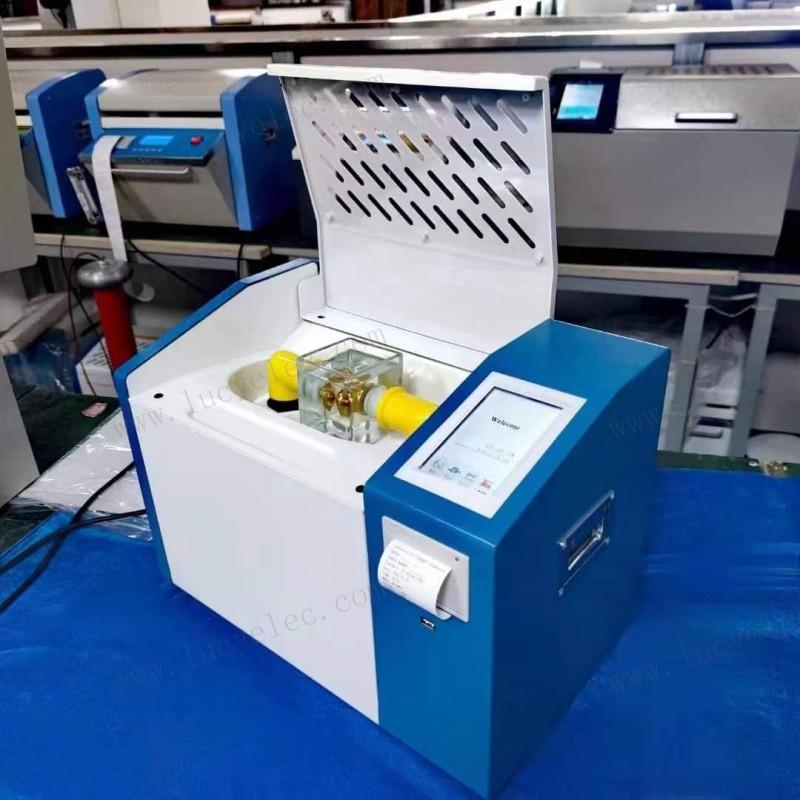

[caption id="attachment_874" align="aligncenter" width="800"]

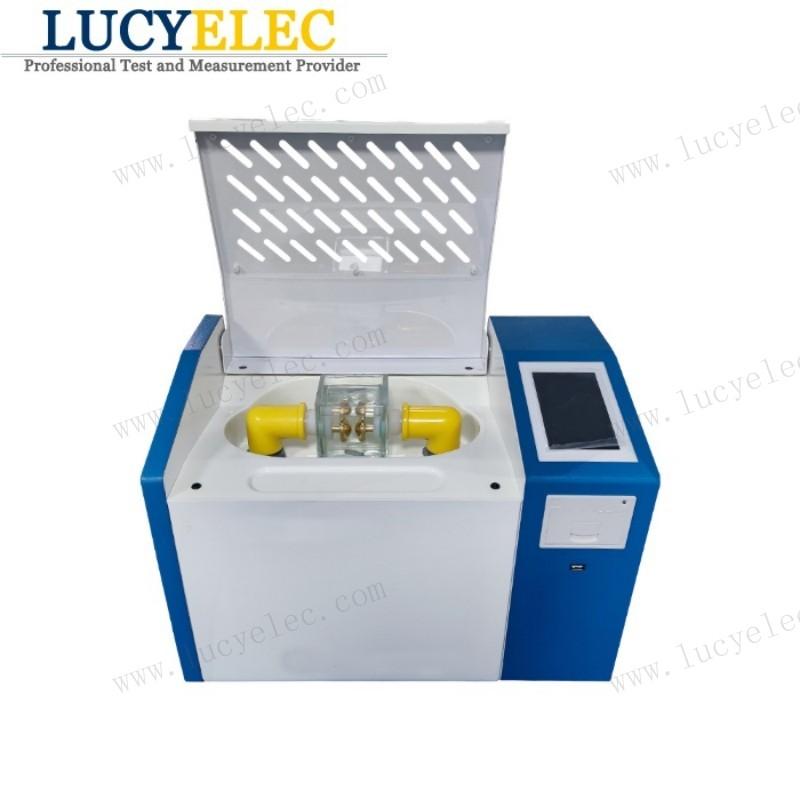

oil tester BDV-JQ1A[/caption]Portable IEC60156 Transformer Oil BDV Tester 80kV also named insulating oil dielectric strength tester for transformer oil. It indicates the ability to withstand electrical stress in oil filled electrical equipment. Lucyelec Test Equipment Co., Ltd. can supply you single cup, three cups, and six cups Oil BDV tester with stable performance and favorable price. Please feel free to ask if any inquiry.
General Descriptions:
Automatic insulating oil dielectric strength tester also named breakdown voltage(BDV) tester for transformer oil, which indicates its ability to resist electrical stress in oil filled electrical equipment. Lucyelec Test Equipment Co., Ltd. can supply you single cup, three cups, and six cups Oil BDV tester with stable performance and favorable price. Please feel free to ask if any inquiry.
Features and Advantages:
1. Conform to multiple standards (IEC60156, ASTM D1816, ASTM D877), and user-defined programs.
2. Capable of measuring the dielectric breakdown voltage up to 80KV.
3. Easy operation and user-friendly. Can display environmental temperature, humidity, and real time display.
4. Fully auto-measuring, data storage, and print.
5. Automatic data storage if power failure.
6. With over-voltage, over-current, H.V. limit switch alarm functions, to make sure the operator more safer.
7. Strong anti-jamming function.
8. Unique design in circuit and softwaremake sure the stable and reliable performance.
9. USB interface or wireless transmission function is optional.
Technical Specification:
| Output voltage | 0~80 kV |
| Electrode Type | Spherical, semi-spherical, disk
Standard 2.5mm (adjustable); |
| Step-up transformer capacity | 1.5 kVA |
| Rising rate of voltage | 0.5~5.0 kV/s (0.5 kV/s, 1kV/s, 2.0kV/s, 3.0kV/s, 5.0kV/s) |
| Measurement accuracy | 1% |
| Supply voltage | AC 110/220 V ±10% |
| Power frequency | 50/60 Hz ±2% |
| Power | 200w |
| Working temperature | 0~40℃ |
| Working humidity | <85 % RH |

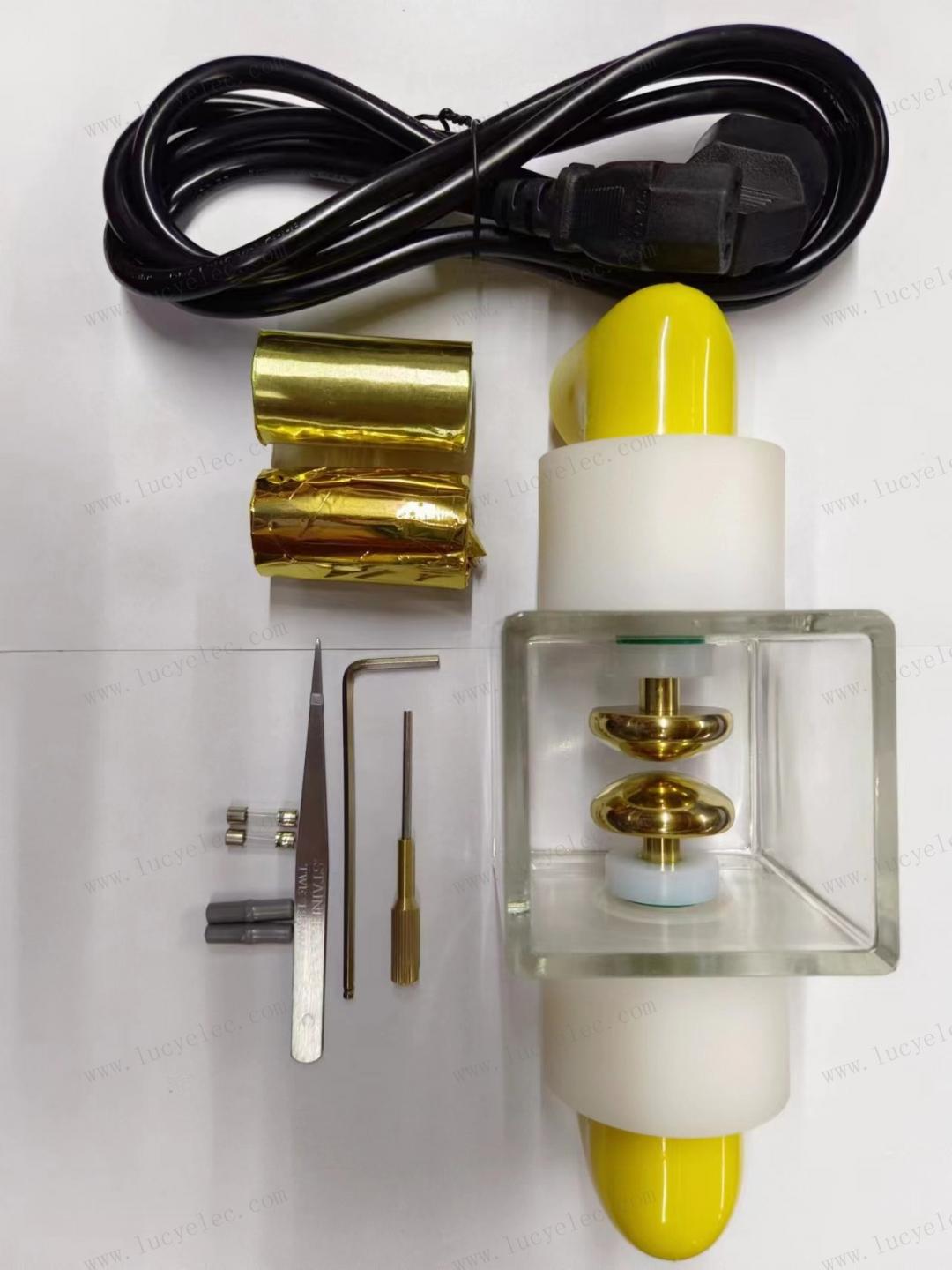

The accessories of Portable IEC60156 Transformer Oil BDV Tester 80kV
Product names：Transformer oil bdv tester, BDV Tester Kit, portable BDV measuring kit, BDV of transformer oil, transformer oil breakdown voltage tester, Automatic transformer oil dielectric stength tester, breakdown voltage of transformer oil, Dielectric Strength of Transformer Oil, transformer dielectric oil test equipment, insulation oil tester, oil pressure tester, oil dielectric strength tester, insulation oil dielectric strength tester, insulation oil pressure tester, automatic insulation oil tester, automatic oil tester, portable oil pressure test device
If you have any enquiry about quotation or cooperation, please contact by WhatsAPP: +86-15194785871, or email us at info@lucyelec.com Our sales representative will reply you within 24 hours. Thank you for your interest in our products.
