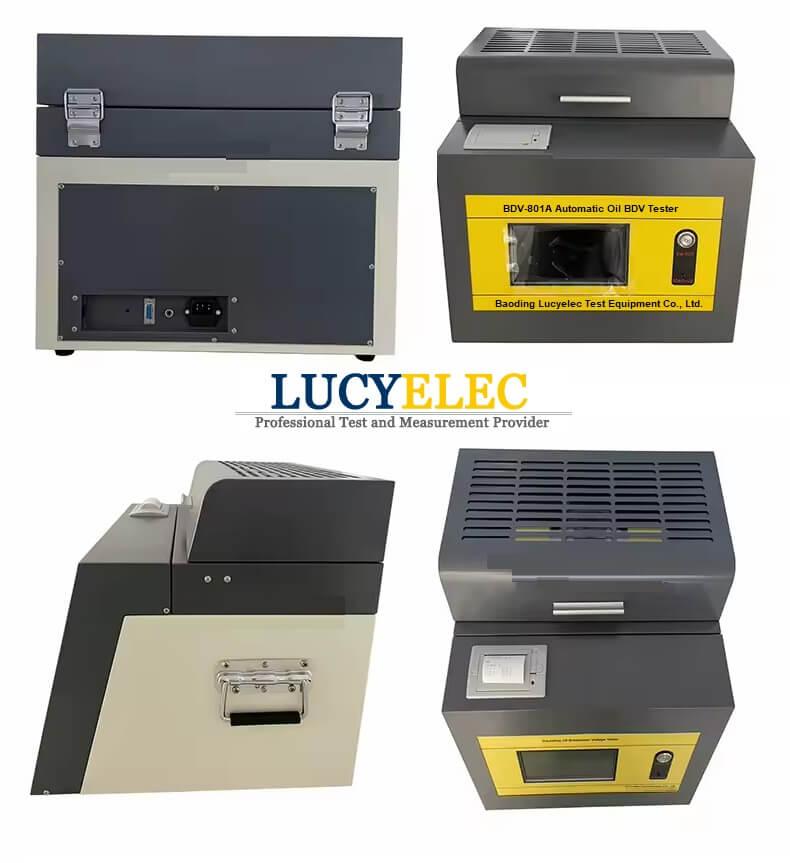

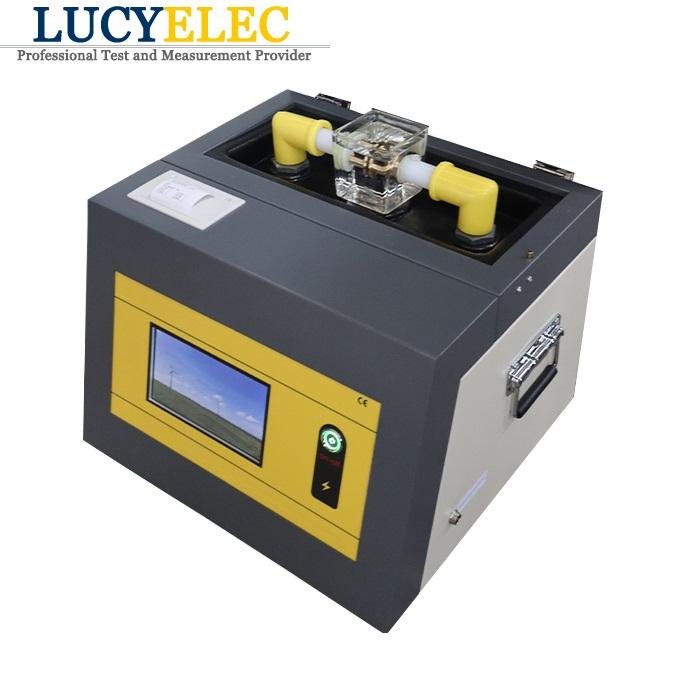

BDV801A transformer oil tester[/caption] [caption id="attachment_768" align="aligncenter" width="800"]

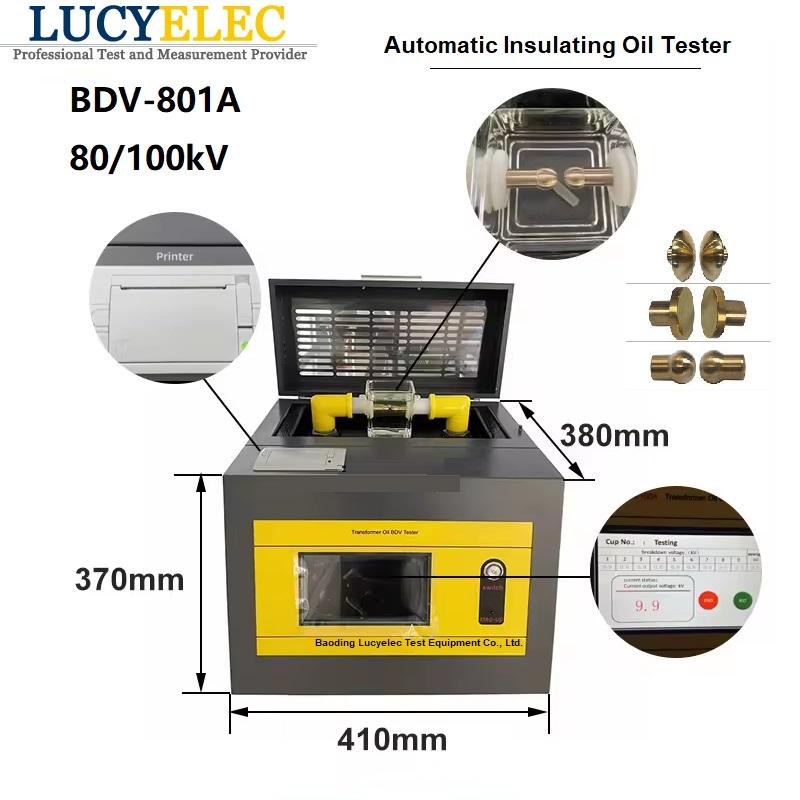

Insulating oil tester [/caption]

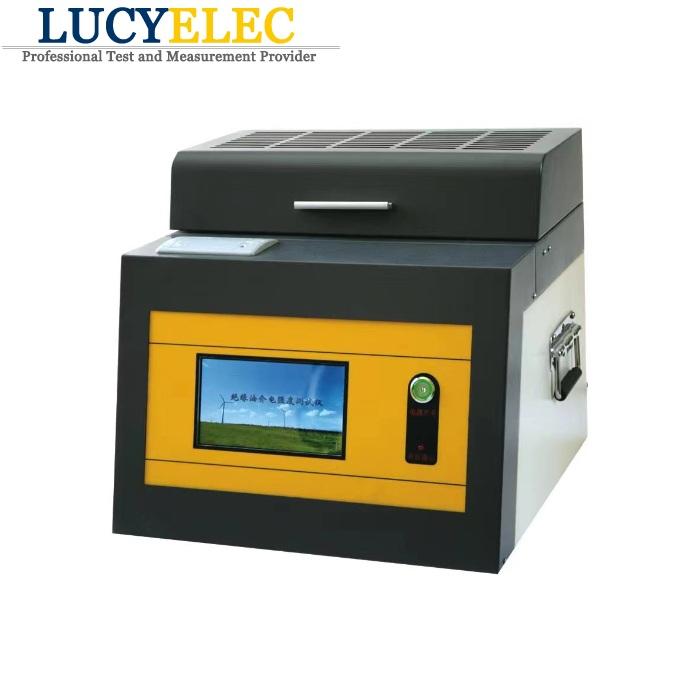

Mineral Oil Dielectric Strength Transformer Oil BDV Tester

Mineral Oil Dielectric Strength Transformer Oil BDV Tester. BDV-801A (80kV, 100kV available) with colorful touch screen, can be customized for infrared oil temperature measurement. Break-down voltage is measured by observing at what voltage, sparking string between two electrode immersed in the oil, separated by specific gap. Lower value of BDV indicates presence of moisture content and conducting substances in the oil. There are a large number of electrical equipment in power system factories and mines. Its internal insulation is mostly oil-filled and insulated. The dielectric strength test of insulating oil is a must-test routine test item. In order to meet the needs of the rapid development of the power industry, Lucyelec has taken the lead in developing this BDV-801A Transformer Oil BDV Tester. Please contact Lucyelec for more details.

Description

Mineral Oil Dielectric Strength Transformer Oil BDV Tester

Model: BDV-801A (80kV, 100kV available) with colorful touch screen, can be customized for infrared oil temperature measurement.

Ⅰ. Description:

Automatic insulating oil dielectric strength tester is also known as oil breakdown voltage tester or oil BDV tester. Break-down voltage is measured by observing at what voltage, sparking string between two electrode immersed in the oil, separated by specific gap. Lower value of BDV indicates presence of moisture content and conducting substances in the oil.

There are a large number of electrical equipment in power system factories and mines. Its internal insulation is mostly oil-filled and insulated. The dielectric strength test of insulating oil is a must-test routine test item. In order to meet the needs of the rapid development of the power industry, Lucyelec has taken the lead in developing this BDV-801A Transformer Oil BDV Tester.

Ⅱ. Features and Advantages:

1. The instrument is controlled by a large capacity single chip microcomputer, which is stable and reliable;

2.The instrument is equipped with temperature, humidity and clock display functions, and can be customized for infrared oil temperature measurement.

3.The wide range watchdog circuit is set in the instrument to prevent the crash;

4.A variety of standard options. The instrument program is equipped with GB / t507-1986, GB / t507-2002, dl429.9, iec156 and self programming operation, which can adapt to a variety of choices of different users;

5.The oil cup of the instrument is made of special glass and high polymer materials, which are processed finely to prevent oil leakage and corrosion;

6.The unique high-voltage sampling design of the instrument allows the test value to enter the A / D converter directly, avoids the error caused in the analog circuit, and makes the measurement result more accurate;

7.The instrument has over-current, over-voltage, short-circuit and other protection functions, and has strong anti-interference ability and good electromagnetic compatibility;

8.Can switch between Chinese and English at will to meet the needs of any customer;

9.The instrument itself has data analysis function to assist the staff to determine the oil quality;

10.USB and RS232 data transmission（Selective configuration）

Ⅲ. Technical Specifications

Output voltage	0~80 kV (0-100KV on request)
Electrode Type	Spherical, semi-spherical, diskStandard 2.5mm (adjustable);
Step-up transformer capacity	1.5 kVA
Rising rate of voltage	0.5~5.0 kV/s (adjustable)
Power supply distortion rate	<1%
Voltage Accuracy	± 2% reading +2 digits
Power frequency	50/60 Hz ±2%
Test times	6 (1-9times optional)
Interval Time	300s (0-900s optional)
Stiring Time	15s (0-250s optional)
Dimension	650×470×410 (mm)
Weight	42kg

Ⅳ. Details Display
