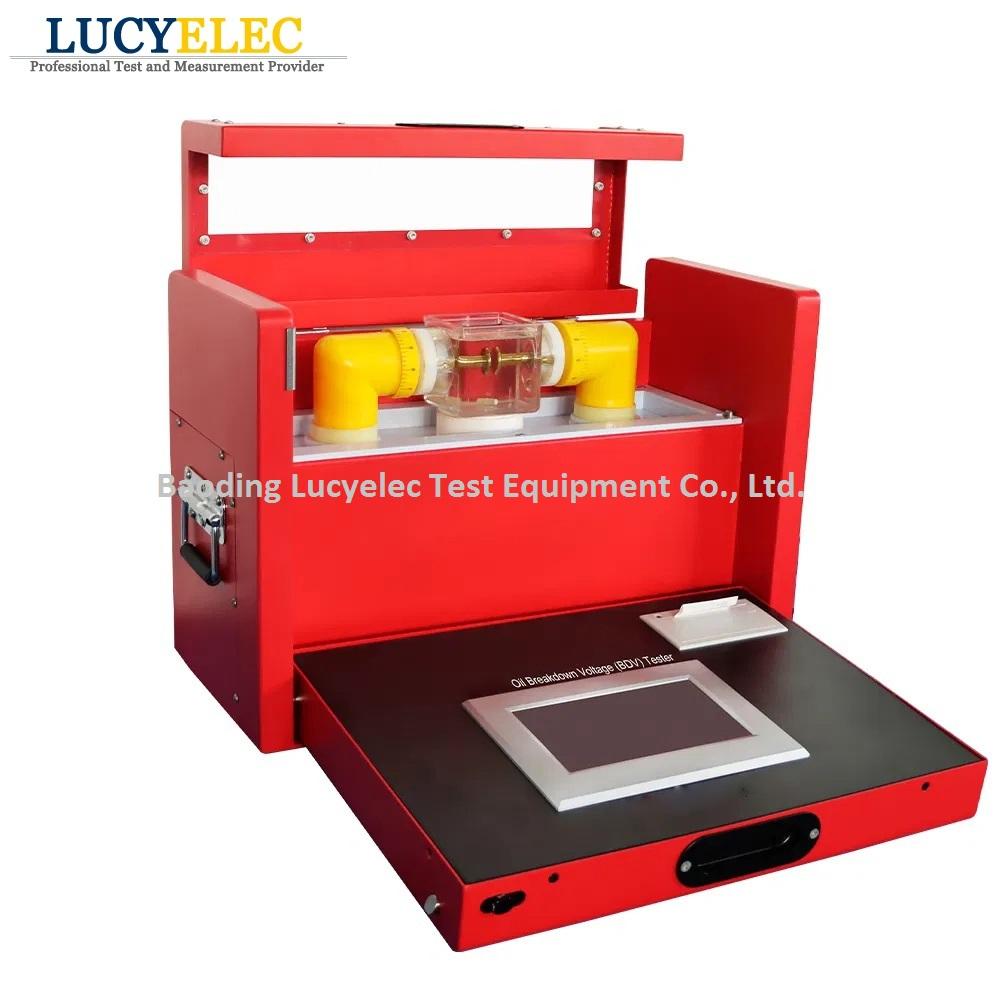

[caption id="attachment_1002" align="aligncenter" width="800"]

BDV-6801B insulating oil tester[/caption] [caption id="attachment_1003" align="aligncenter" width="1000"]

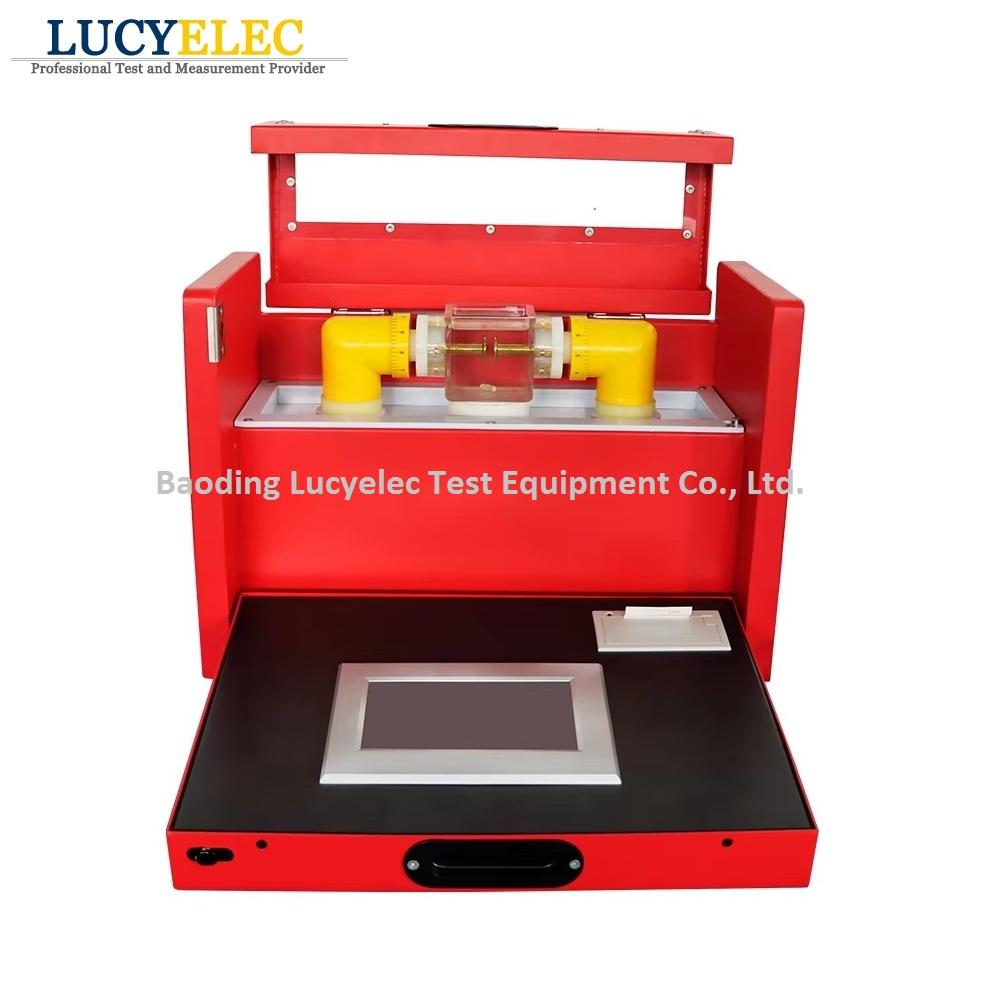

BDV-6801B transformer oil tester[/caption]

Lucyelec Foldable BDV-6801B 80kV Transformer Oil Dielectric Strength/Breakdown Voltage Tester

Automatic insulating oil dielectric strength tester is also known as oil breakdown voltage tester or oil BDV tester. Break-down voltage is measured by observing at what voltage, sparking string between two electrode immersed in the oil, separated by specific gap. Lower value of BDV indicates presence of moisture content and conducting substances in the oil.

There are a large number of electrical equipment in power system factories and mines. Its internal insulation is mostly oil-filled and insulated. The dielectric strength test of insulating oil is a must-test routine test item. In order to meet the needs of the rapid development of the power industry, Lucyelec has taken the lead in developing this BDV-6801B Transformer Oil BDV Tester.

Description

Lucyelec Foldable BDV-6801B 80kV Transformer Oil Dielectric Strength/Breakdown Voltage Tester

Model: BDV-6801B 80kV, Foldable new design, super light weight and smaller case, more convenient and efficient for oil lab and field transformer oil testing.

Ⅰ. General Descriptions:

Ⅱ. Detailed Image:

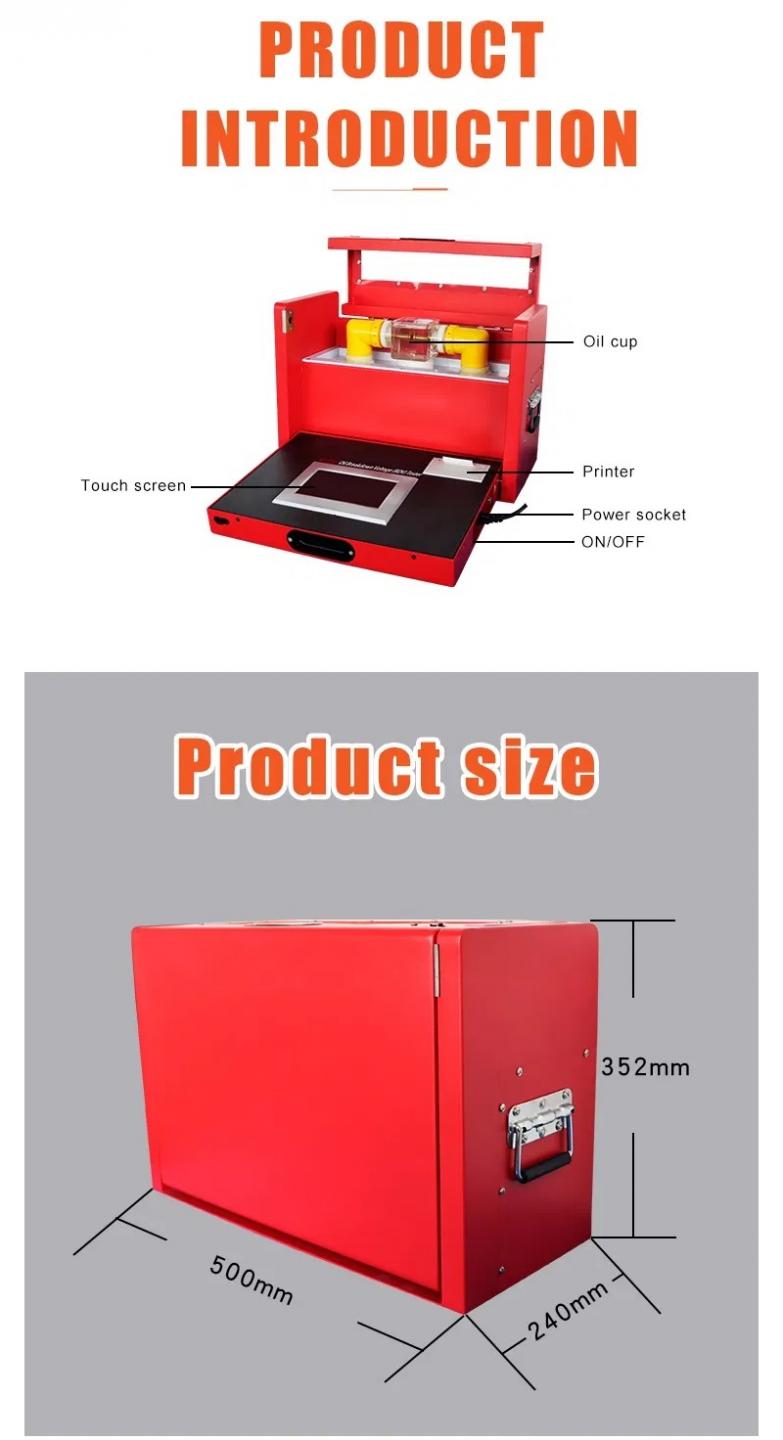

BDV 6801B Details

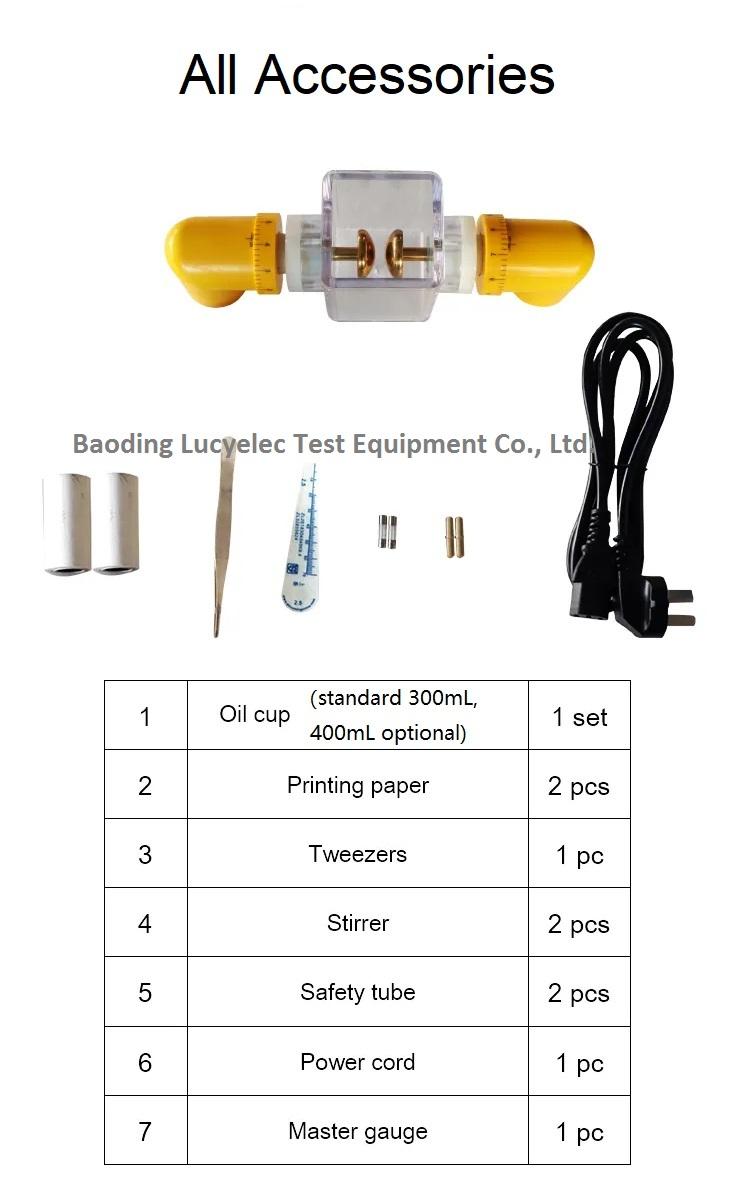

All Accessories

Ⅲ. Features and Advantages:

1. Simple operation, fully automatically (can be finished just press on key).

2. Able to detect the ambient temperature and humidity.

3. With a microprocessor, automatically fulfill the withstand voltage test for oil circulation with a range of 0 ～ 80kV or 100kV (including boosting, maintaining, mixing, standing, calculation, printing and other operations).

4. Large colorful touch screen menu controlled, clearly displaying the whole testing status and result.

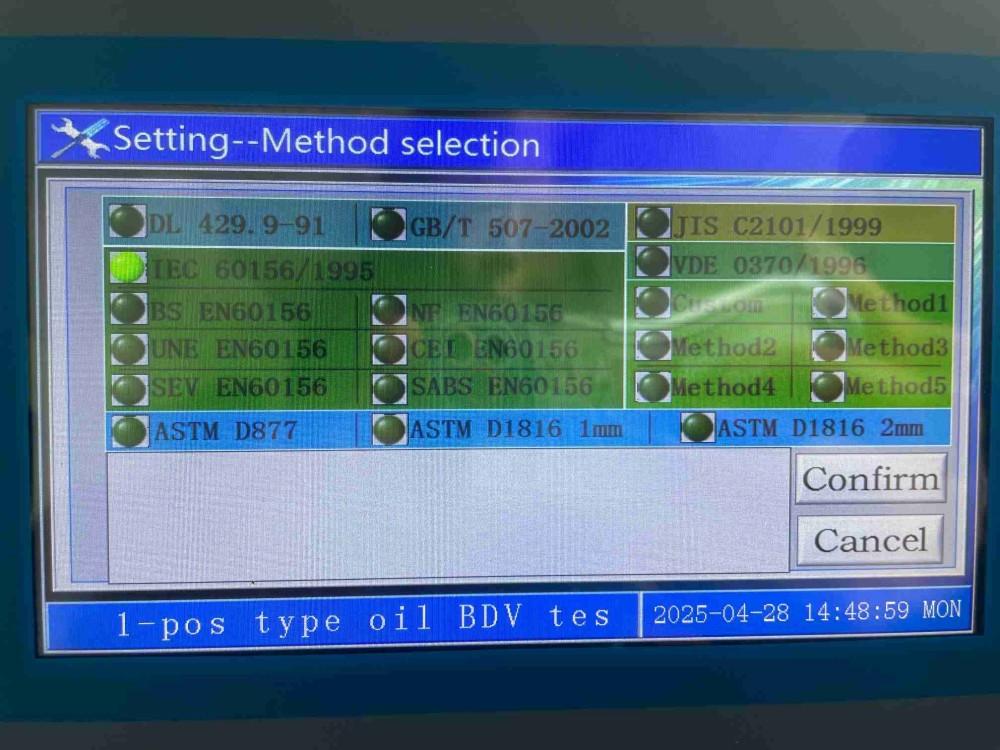

5.Pre-programmed more than 14 test standards such as DL 429.9-91, GB/T 507-2002, IEC 60156/1995, BS EN60156, NF EN60156, CEI EN60156, SEV EN60156, SABS EN60156, UNE EN60156, VDE 0370, JIS C2101/1999, ASTM D877, ASTM D1816, etc., and there are 5 user-programmed methods and custom test modes. Very convenient for different users to choose freely.

6. Power-down preservation, system time can go on running under power off.

7. With USB interface as optional.

8.The instrument has strong adaptability and can be used in laboratories and outdoor scenes. The instrument also has strong anti-interference ability and can work normally in strong electromagnetic field environments.

9.Small volume, light which operated in the open air very conveniently.

10.This instrument has overvoltage, overcurrent, limit and other protection system. Under normal use conditions, the safety of the instrument itself and the operator is absolutely guaranteed.

Ⅳ. Technical Specifications:

BDV-6801B Portable Breakdown Voltage Transformer Oil Tester

Output voltage	0~80 kV
Electrode Type	Spherical, semi-spherical, diskStandard 2.5mm (adjustable);
Step-up transformer capacity	1.5 kVA
Rising rate of voltage	0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0kV/s (optional)
Power supply distortion rate	<3%
Voltage Accuracy	±3%
Power supply	AC220V±22V, 50Hz±2.5Hz
Ambient Temperature	0ºC~+40ºC
Ralative Humidity	<80%
Power Consumption	200W

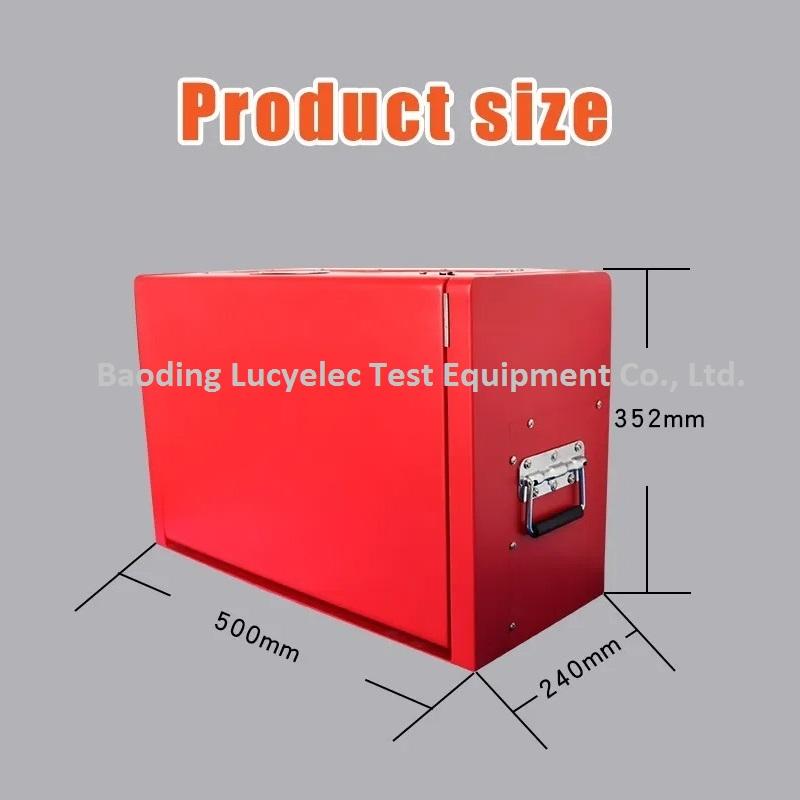

Dimension	500×240×352 (mm)
Weight	25kg

Max Test Times: 10 times, Stir can be set”YES” or “NO”
