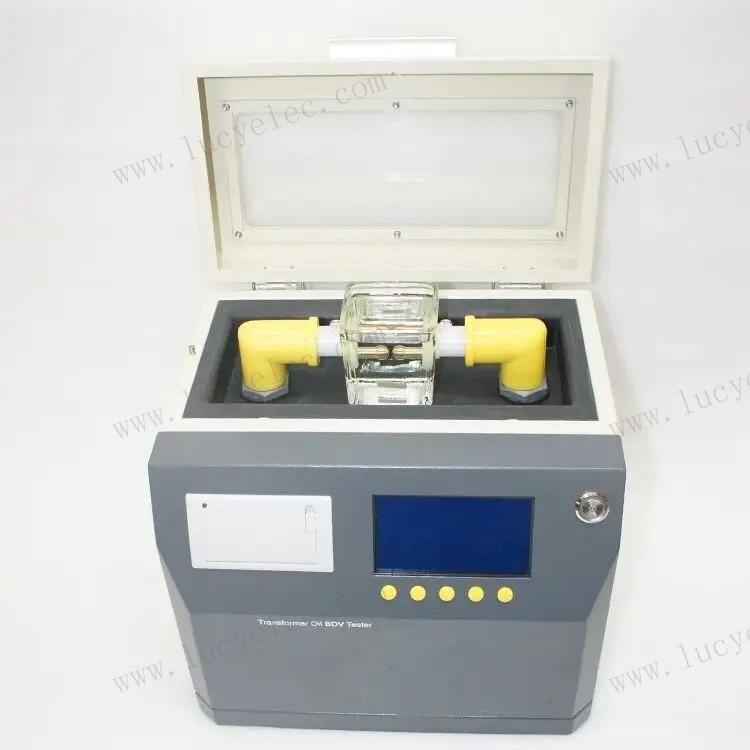

transformer oil test set BDV801H[/caption] [caption id="attachment_871" align="aligncenter" width="750"]

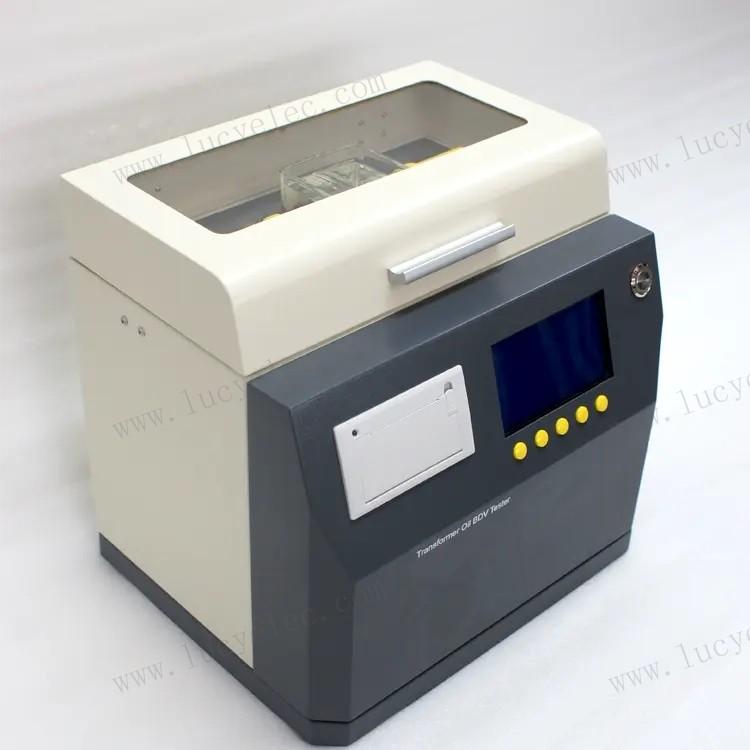

BDV801H oil test set[/caption]

Built-in Battery On-site BDV Transformer Oil Tester

Automatic insulating oil dielectric strength tester is also known as oil breakdown voltage tester or oil BDV tester. Break-down voltage is measured by observing at what voltage, sparking string between two electrode immersed in the oil, separated by specific gap. Lower value of BDV indicates presence of moisture content and conducting substances in the oil.

There are a large number of electrical equipment in power system factories and mines. Its internal insulation is mostly oil-filled and insulated. The dielectric strength test of insulating oil is a must-test routine test item. In order to meet the needs of the rapid development of the power industry, Lucyelec has taken the lead in developing this BDV-801H Transformer Oil BDV Tester.

Description

Built-in Battery On-site BDV Transformer Oil Tester

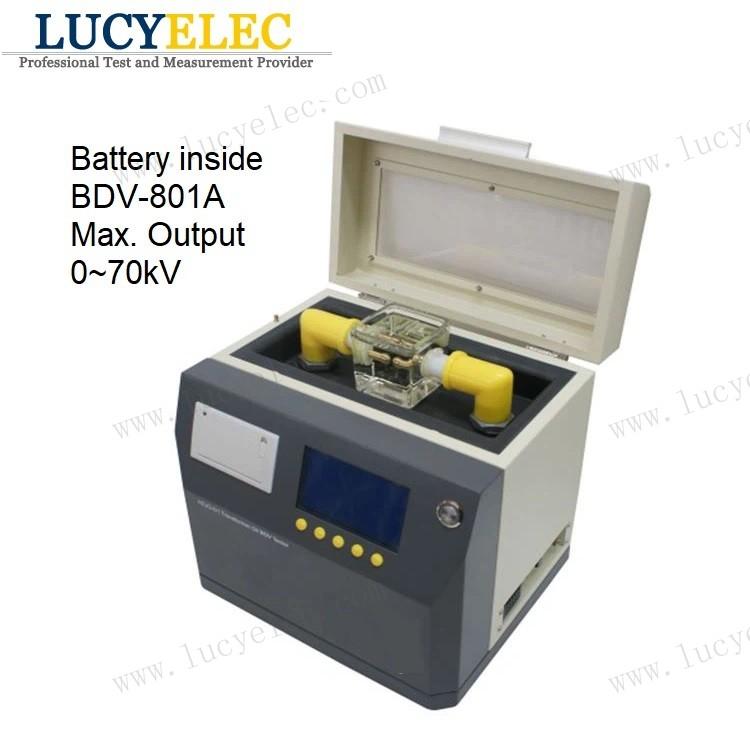

Model: BDV-801H (Battery inside, Max. Output voltage 70kV, 50/60HZ conversion)

Ⅰ. Description:

Ⅱ. Technical Specifications

Output voltage	0~70 kV
Electrode Type	Spherical, semi-spherical, diskStandard 2.5mm (adjustable);
Step-up transformer capacity	1.5 kVA
Rising rate of voltage	0.5~5.0 kV/s (adjustable), error 0.2kV/s
Power supply distortion rate	<1%
Voltage Accuracy	± 2% reading +2 digits
Power frequency	50/60 Hz
Test times	6 (1-10times optional)
Interval Time	300s (0-5900s optional)
Stiring Time	15s (0-240S optional or normally on/normally off)
Dimension	360×300×360 (mm)
Weight	22kg

Ⅲ. Features and Advantages:

The instrument is controlled by large capacity single chip microcomputer, and the work is stable and reliable；
The wide range watchdog circuit in the instrument prevents the phenomenon of crash；
A variety of operation options, the instrument program with GB507-1986, GB507-2002 two national standard methods, industry standard DL/429, international standard IEC156 and custom operation, optional standards have 10, to meet the needs of most countries in the world；
The instrument oil cup is made of special glass casting molding, which prevents the occurrence of interference phenomena such as oil leakage；
The instrument’s unique high-voltage sampling design allows the test values to be directly fed into the A/D converter, avoiding errors in the analog circuit and making the measurement results more accurate；
Frequency can be set according to customer needs, 50/60HZ conversion, to meet the needs of different customers；
The instrument has overcurrent, overvoltage, short circuit and other protection functions, and has a strong anti-interference ability, electromagnetic compatibility is good；
Built-in lithium battery, no external power supply. Portable structure, easy to move, indoor and outdoor use is very convenient.
